Trawl Chain
Mega Link Trawl Chain is a high-strength alloy steel chain available in short, mid, and long link configurations, purpose-built for deep-sea trawling, fishing net rigging, and marine drag operations requiring exceptional durability and corrosion resistance.
- Test certificate available on request
Sizes and ratings

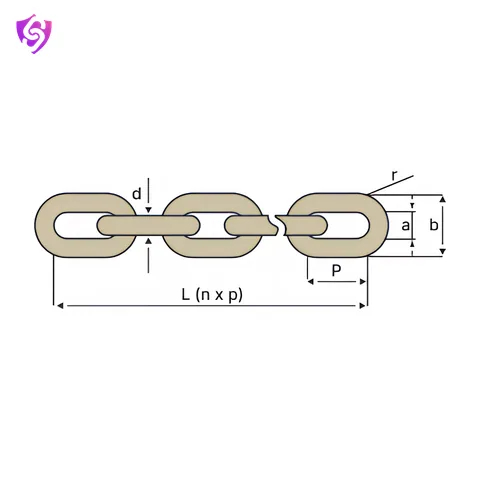

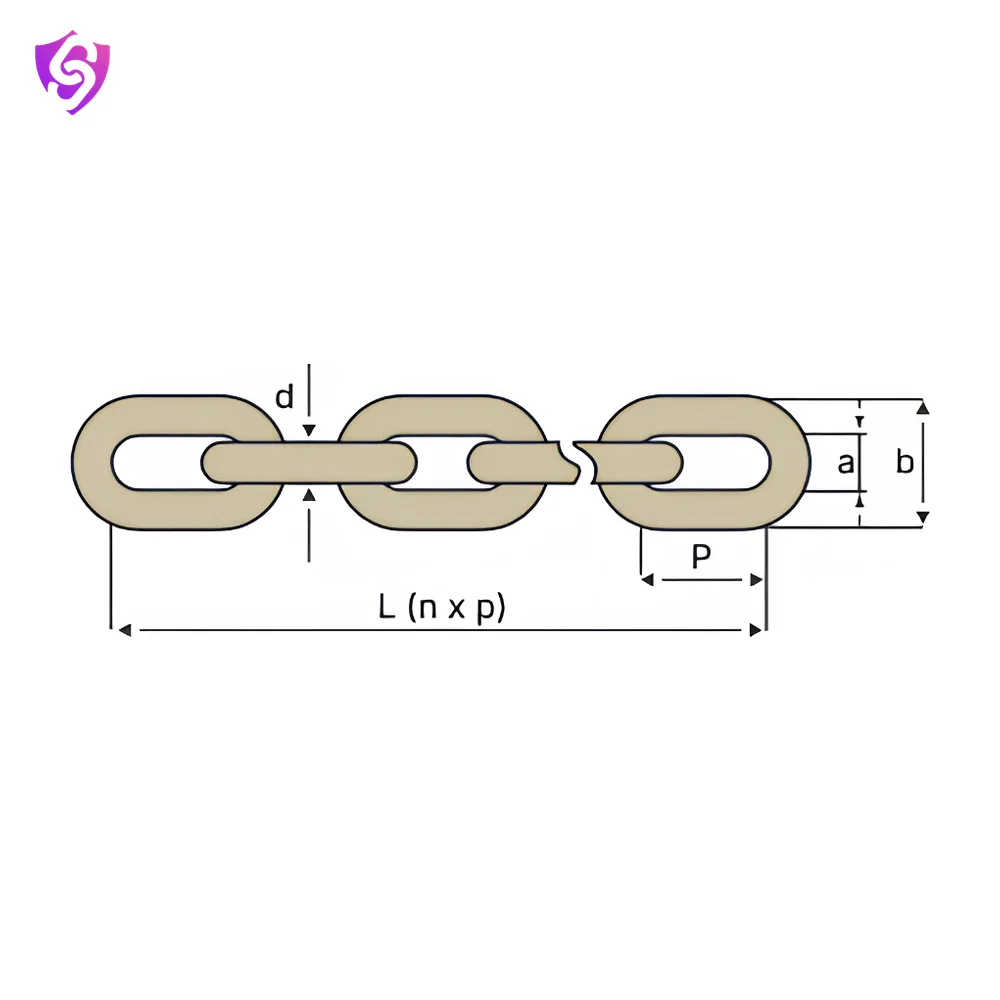

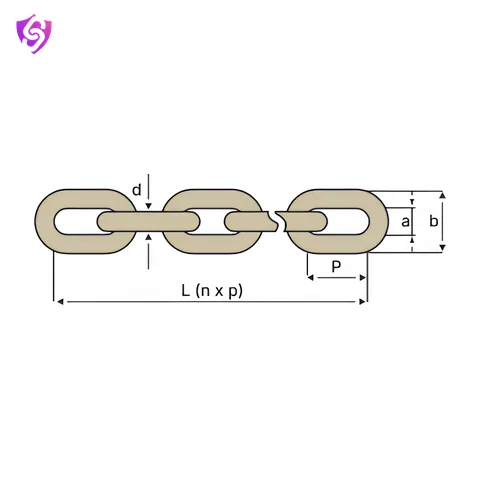

6 sizes| Size d x p (mm) | Width (Inside Min. a) | Width (Outside Min. b) | Weight (kg/m) |
|---|---|---|---|
| 7 x 21 | 10 | 25.5 | 1.05 |
| 10 x 30 | 14 | 36 | 2.2 |
| 13 x 39 | 18.1 | 47.1 | 3.8 |
| 16 x 48 | 22.4 | 57.4 | 5.63 |
| 19 x 57 | 27.8 | 68.8 | 7.81 |
| 20 x 60 | 29 | 72 | 8.52 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Transport / Lashing |
| Material | High Quality Alloy Steel |
| Standard | ISO, DIN, BS, JIS, ASTM |
| Color | Self Color / Galvanized |
| Country Of Origin | Made In India |
| Available Types | Short Link Chain, Mid Link Chain, Long Link Chain |
| Available Sizes | 7mm x 21mm – 26mm x 92mm |
| Surface Treatment | Self-color, Hot-dip Galvanized, Electro-Galvanized |
Key features
- Custom non-standard chains available on request
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
