Mining Chain
Mega Link Mining Chain is a heavy-duty alloy steel chain conforming to GB/T 1278 and DIN22252-1/2 standards, engineered with a rust-preventive coating and high breaking elongation for reliable performance in underground mining, conveyor, and scraper applications.
- Test certificate available on request
Sizes and ratings

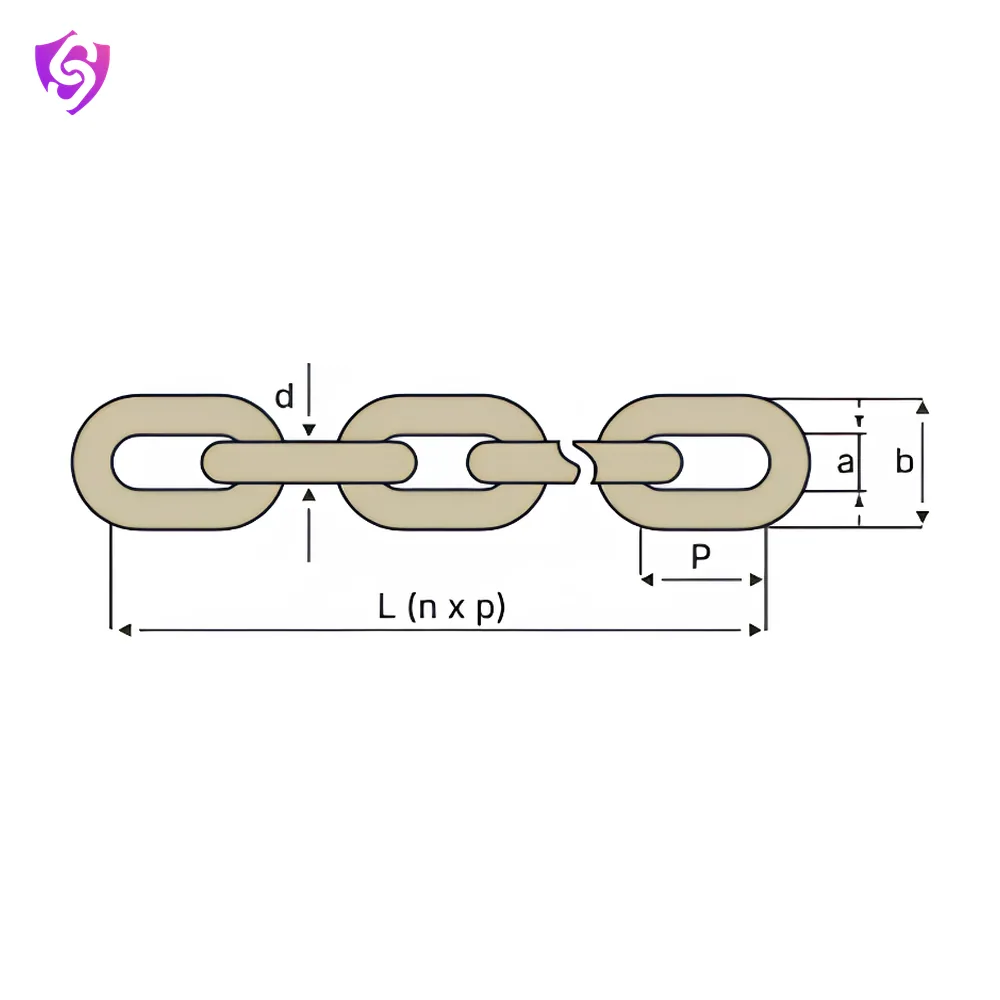

8 sizes| Chain Diameter (mm) | Pitch of Chain Link (mm) | Width (Inside Min.) | Width (Outside Min.) |
|---|---|---|---|
| 10 ± 0.4 | 40 ± 0.5 | 12 | 34 |
| 14 ± 0.4 | 50 ± 0.5 | 17 | 48 |
| 18 ± 0.5 | 64 ± 0.6 | 21 | 60 |
| 22 ± 0.7 | 86 ± 0.9 | 26 | 74 |
| 24 ± 0.8 | 86 ± 0.9 | 28 | 79 |
| 26 ± 0.8 | 92 ± 0.9 | 30 | 86 |
| 30 ± 0.9 | 108 ± 1.0 | 34 | 98 |
| 34 ± 0.9 | 126 ± 1.0 | 38 | 109 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Mining / Industrial |
| Standard | GB/T 1278, DIN22252-1/2 |
| Color | Black / Rust Preventive Coated |
| Country Of Origin | Made In India |
| Material | High-quality alloy steel (DIN17115) |
| Quality Grade | Class 1, Class 2 |
| Breaking Elongation | 12% Max |
| Finish | Rust preventive oil coating or black painting |
| Manufacture Standard | GB/T 1278 and DIN22252-1/2 |
Key features
- Conforms to Grade B or C requirements of National Industrial Standard
- Custom non-standard chains available on request
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
