DA-007

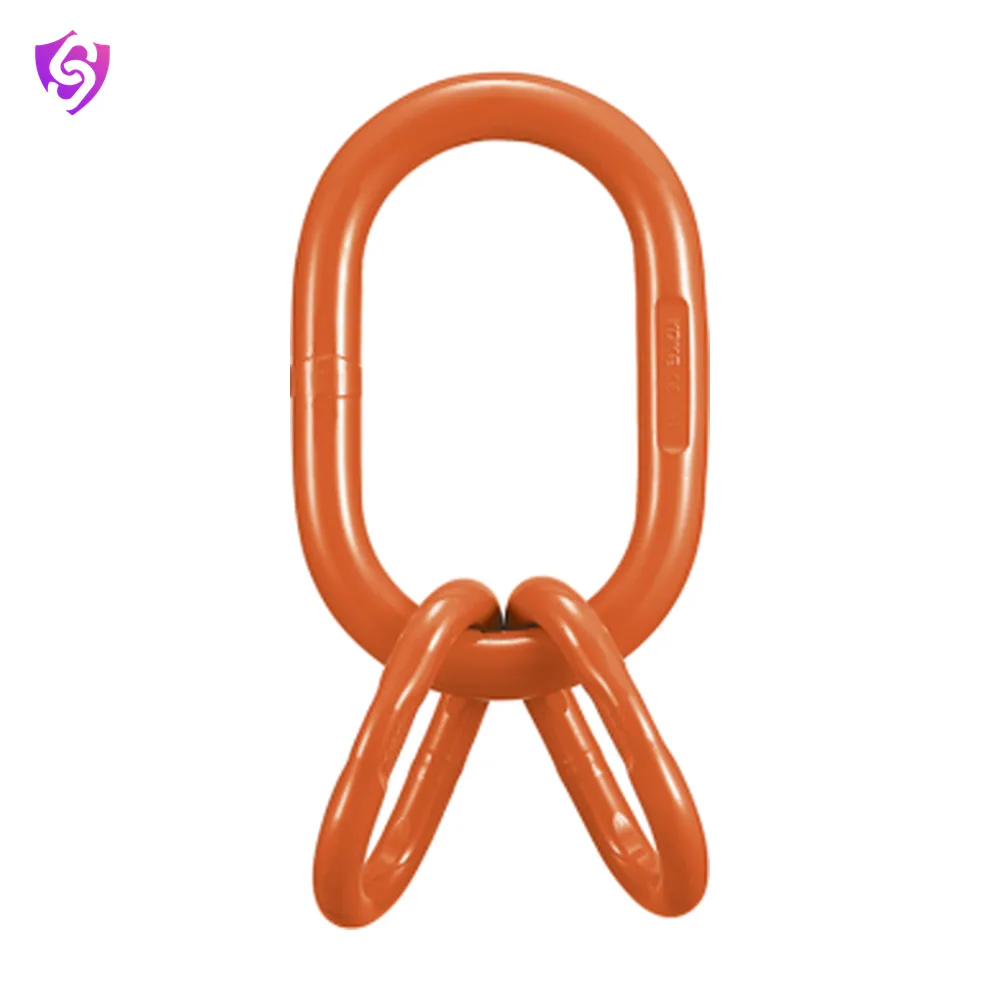

Name: Yoke DA-007
Brand: Yoke

Grade 80 alloy steel load chain, master links, master link assemblies and connecting links, the parts a chain sling is built from.

Assembled with · WLL β 0-45° (tonnes) · Proof Load (kN)

DatasheetSizes, ratings, specifications

Test certificate available on request

Sizes and ratings

9 sizes

Code	Assembled with	WLL β 0-45° (tonnes)	Proof Load (kN)
DA-007-16	FD-161+2 FD-131	4.1	100
DA-007-22	FD-222+2 FD-191	8.9	218
DA-007-25	FD-251+2 FD-19	8.9	218
DA-007-28	FD-28+2 FD-22	12.9	316
DA-007-32	FD-32+2 FD-25	17	417
DA-007-36	FD-361+2 FD-281	23.6	578
DA-007-40	FD-40+2 FD-32	28.1	688
DA-007-45	FD-45+2 FD-36	38.3	938
DA-007-50	FD-50+2 FD-401	45	1103

Specifications

Brand	Yoke
Model	DA-007
WLL β 0-45° range	4.1–45 tonnes

Applications

Chain sling assembly
Steel plants and foundries
Heavy engineering
Ports and yards

Care and replacement

Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
