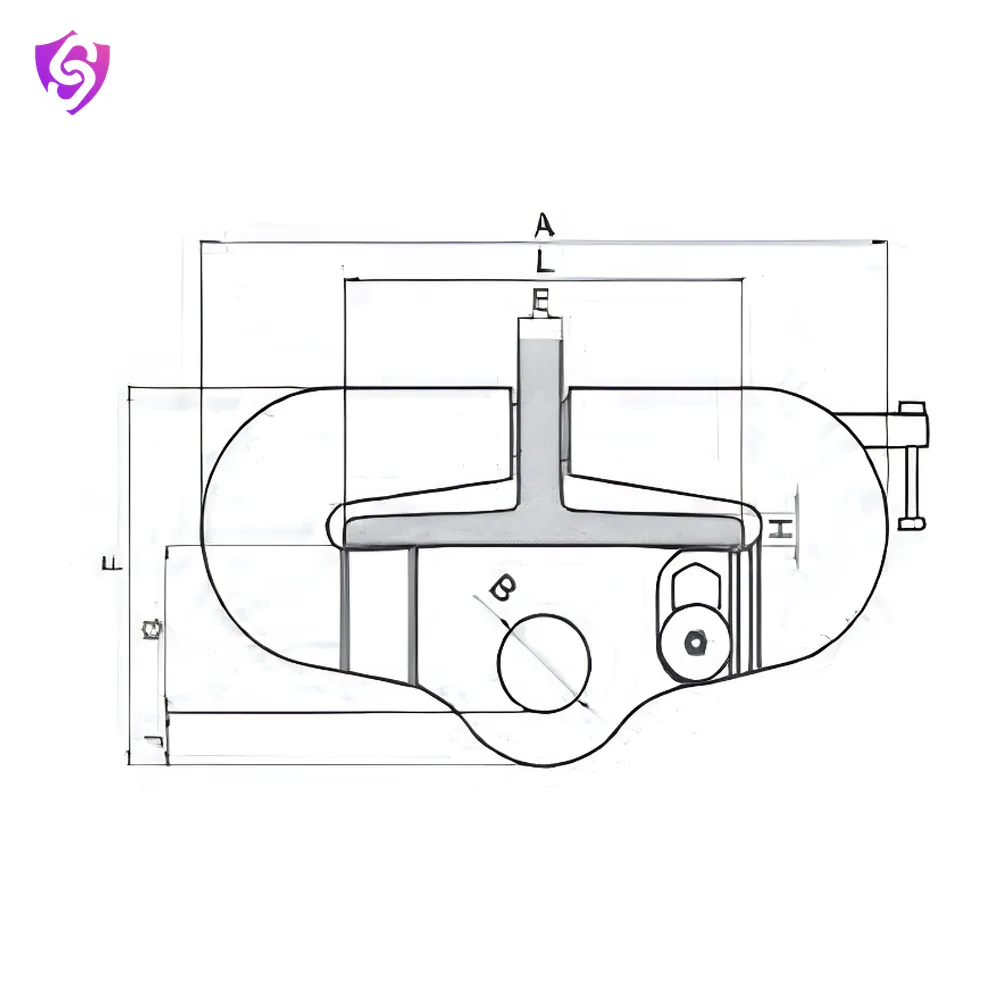

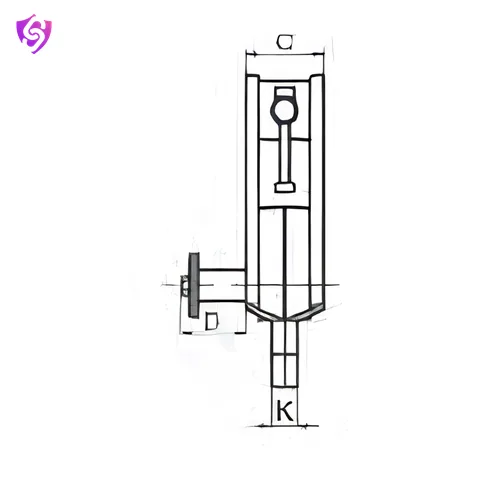

Beam Clamp (Universal)
Lifting Clamps Description: The Universal Beam Clamp (EN13157) is engineered for both vertical and side load lifting operations, eliminating the need for spreader beams.
EN 13157
- Test certificate available on request
Sizes and ratings
4 sizes| Model | WLL (t) | Net Weight (kg) |
|---|---|---|
| DLBC-2 | 2 | 10.6 |
| DLBC-3 | 3 | 12.50 |
| DLBC-5 | 5 | 20.50 |
| DLBC-10 | 10 | 24.50 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Vertical and side load lifting; pulling at angles; semi-permanent anchor point |
| Material | Steel |
| Color | Black |
| Country Of Origin | India Standard – EN13157 |
| WLL range | 2–10 t |
| Standards | EN 13157 |
Key features
- Universal beam clamp designed for vertical use and side load applications where conventional clamps are not suitable
- Suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point
- Eliminates the use of spreader beams in various lifting operations
- Fitted with an adjustable locking mechanism ensuring secure clamping to beam
- Built-in suspension point for low headroom design
- Lightweight design allowing for quick clamping and unclamping
Applications
- Steel plate handling
- Fabrication shops
- Stockyards
- Weighing at the hook
Care and replacement
Check clamp jaws for worn teeth and magnet faces for damage and debris before each lift. Never stand under a load held by a clamp or a magnet.
