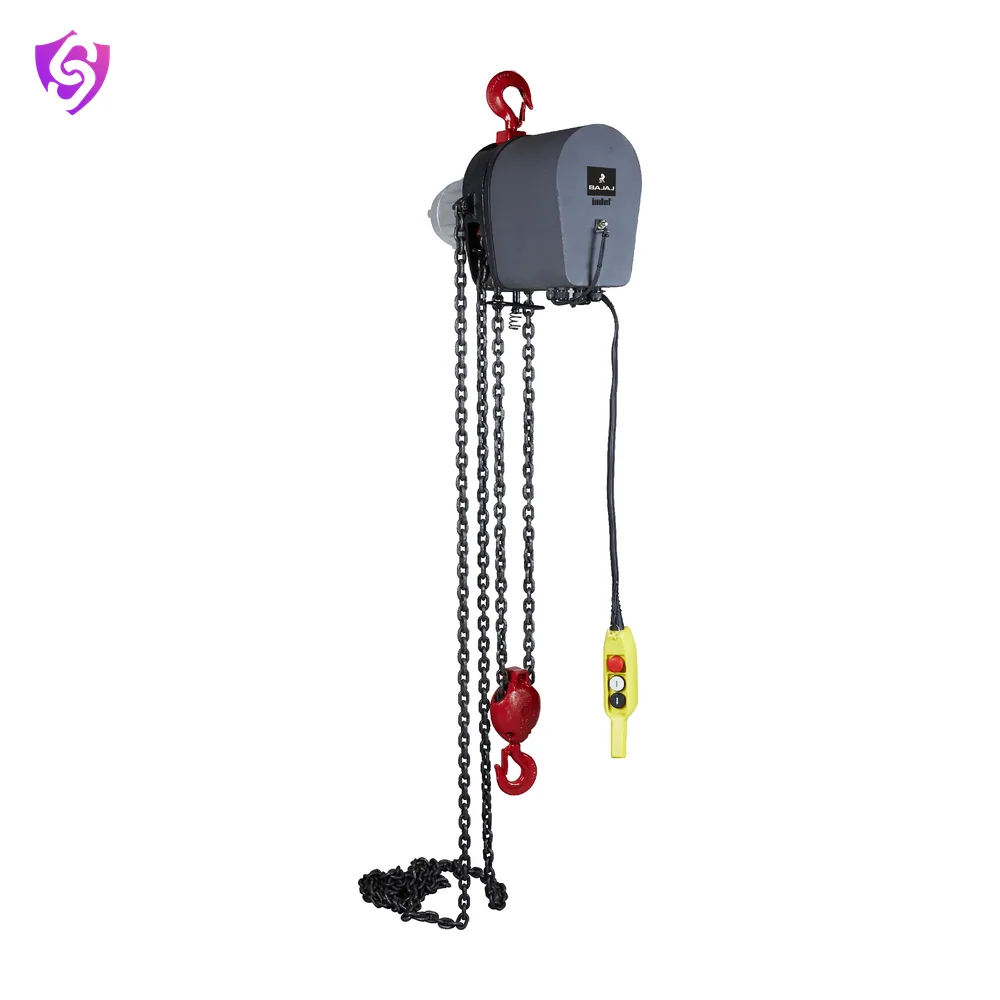

Electric Chain Hoist EH II (Baby)

The EH II hoist, also known as a Baby hoist, is a plug and play chain hoist that fits well for light and medium duty application.

DatasheetSpecifications, standards, care Indef brochure Indef manual

Test certificate available on request

Specifications

Brand	Indef
Capacity Range	1 Ton to 2 Ton
Lifts	3 mtrs to 20 mtrs
Mountings	Hook Suspension Trolley suspension
Falls	2 Fall to 4 Fall

Key features

Higher factor safety ensures maximum utility in areas with undefined load size
Grade 80 alloy steel load chain ensures safety and long life
Comes with a powerful Conical Rotor motor brake for a moderate number of start-stops and braking action capacity of 0.5T to 2T
Availability of electrical overloading detection and safety of operator in select models
Tested for SWL 25% overload condition
Rugged German design proven over 50 years
Aluminium alloy motor stator packet allows better heat dissipation
Double ball bearing supported load chain whee
Precision machine case hardened steel alloy gears
Fully pocketed, Spheroidal Graphite cast and alloy steel load chain wheel
Unique chain guide to guard chain passage
Chain stripper to safeguard chain travel path

Applications

Workshops and gantries
Construction material lifting
Production lines
Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
