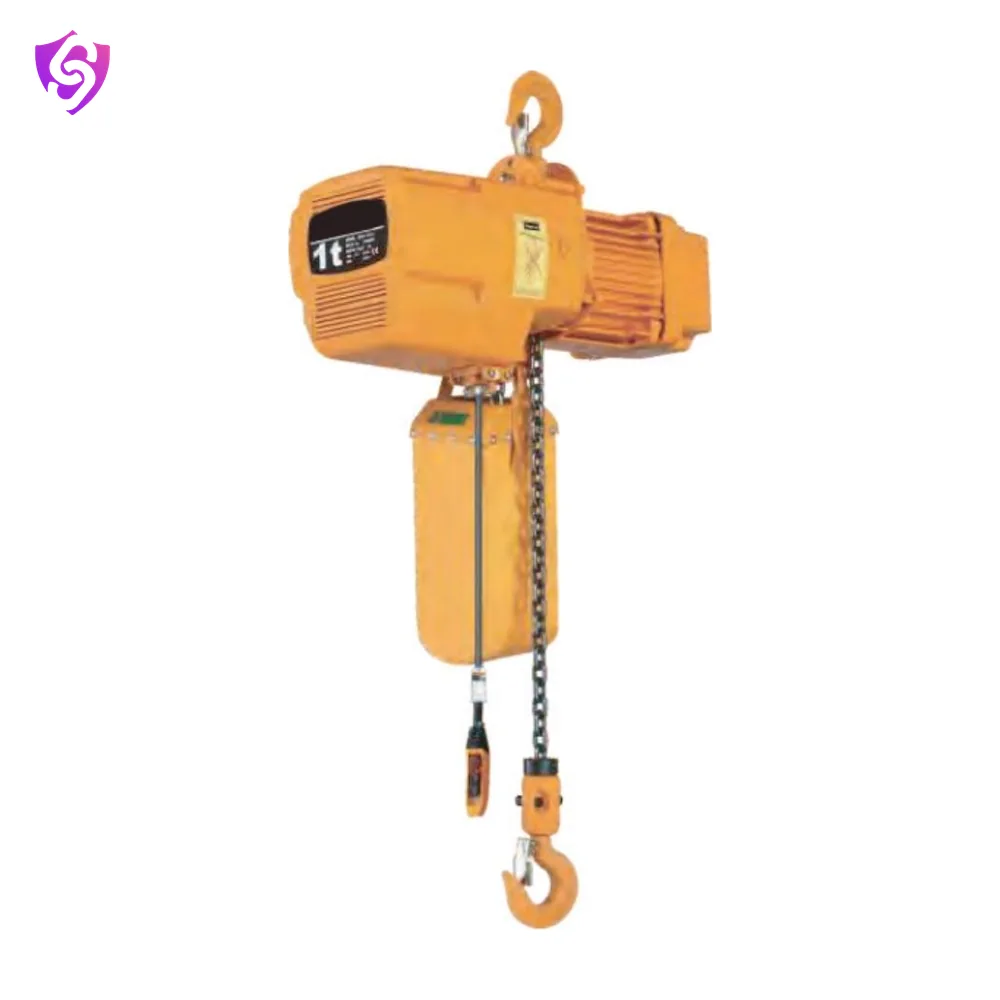

Electric Hoist with Hook (DLED Series)
The DLED Electric Hoist with Hook (0.5–5 tons) provides powered lifting with single speed and frequency conversion options.
- Test certificate available on request
Sizes and ratings
11 sizes| Model | Capacity Load (t) | Hoisting Height (m) | Single Speed (m/min) |
|---|---|---|---|
| DLED-00501 | 0.5 | 3 | 6.8 |
| DLED-0101 | 1 | 3 | 6.6 |
| DLED-0102 | 1 | 3 | 3.4 |
| DLED-01501 | 1.5 | 3 | 8.8 |
| DLED-0201 | 2 | 3 | 6.6 |
| DLED-0202 | 2 | 3 | 3.3 |
| DLED-02501 | 2.5 | 3 | 5.4 |
| DLED-0301 | 3 | 3 | 5.4 |
| DLED-0302 | 3 | 3 | 4.4 |
| DLED-0303 | 3 | 3 | 2.2 |
| DLED-0502 | 5 | 3 | 2.7 |
Specifications
| Brand | Mega |
|---|---|
| Model | DLED |
| Usage/Application | Electric powered lifting; Japan FECBO ultra heat-treatable steel alloy chain |
| Country Of Origin | India Standard |
Key features
- Clutch for emergency overload protection (motor slips on abnormal load)
- Inverse phase sequence protecting device
- Limit switch for automatic motor stop; side magnetic braking device
- Emergency stop button; control voltage 24V/36V/48V/110V optional
- Wireless remote control and overheat protector can be assembled
Applications
- Workshops and gantries
- Construction material lifting
- Production lines
- Stores and loading bays
Care and replacement
Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
