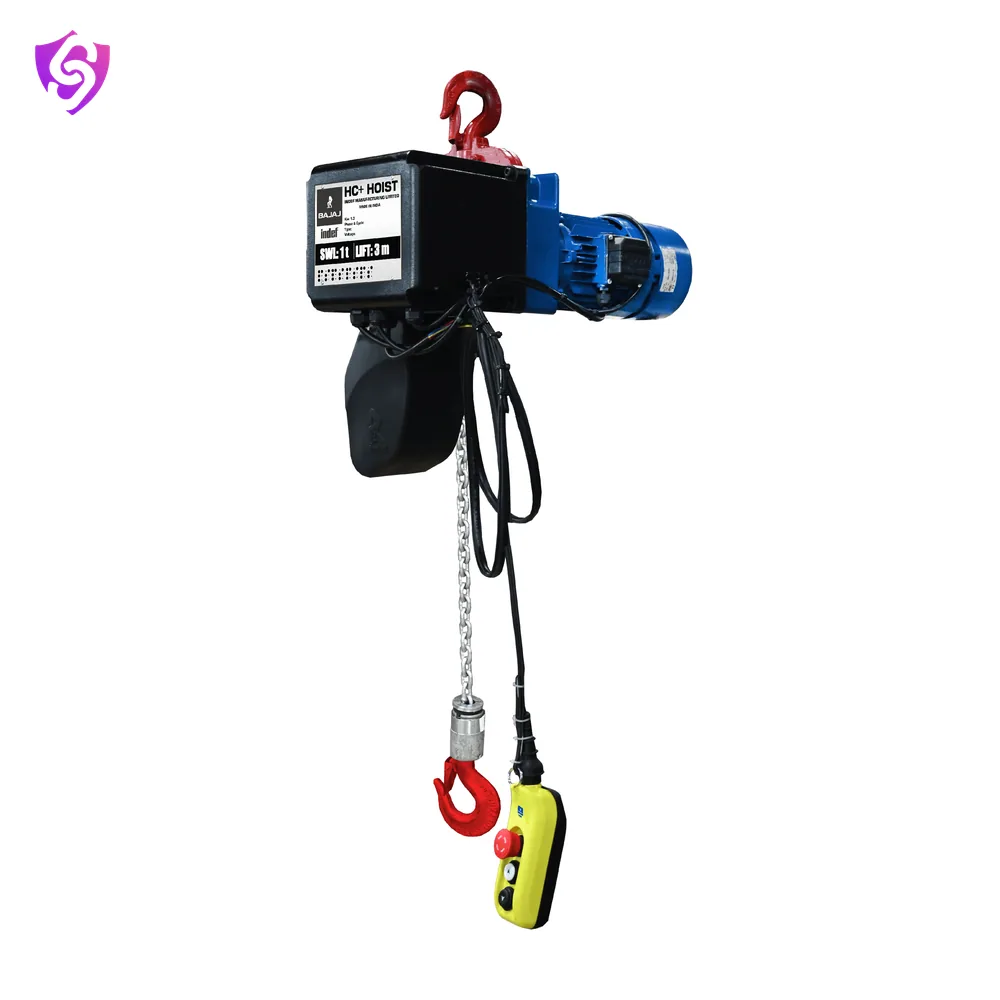

Electric Chain Hoist HC+

The HC+ is Bajaj Indef’s answer to a new-gen solution for medium duty application requirements.

DatasheetSpecifications, standards, care Indef brochure Indef manual

Test certificate available on request

Specifications

Brand	Indef
Capacity Range	250 kgs to 5000 kgs
Lifts	3 mtrs to 20 mtrs
Mountings	Hook Suspension Trolley suspension
Falls	Single Fall Double fall

Key features

Compact Design
Higher CDF and start-stops per hour
Gearbox is housed in an aluminium alloy body and internal gears are made of carburised hardened steel alloy and greased for low noise
Grip-friendly cylindrically shaped lower hook with thrust bearing
Standard four stage gear cam limit switch
Surface hardened blackodized and corrosion free strong load chain
Equipped with powerful AC brake with high braking torque for fail-safe operations
Supports a range of 0.25T to 5T
Tested for SWL 25% overload condition
Rugged Italian design
Gravity dye cast gearbox body and case
Precision machine cut case, hardened steel alloy gears and load chain wheel

Applications

Workshops and gantries
Construction material lifting
Production lines
Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
