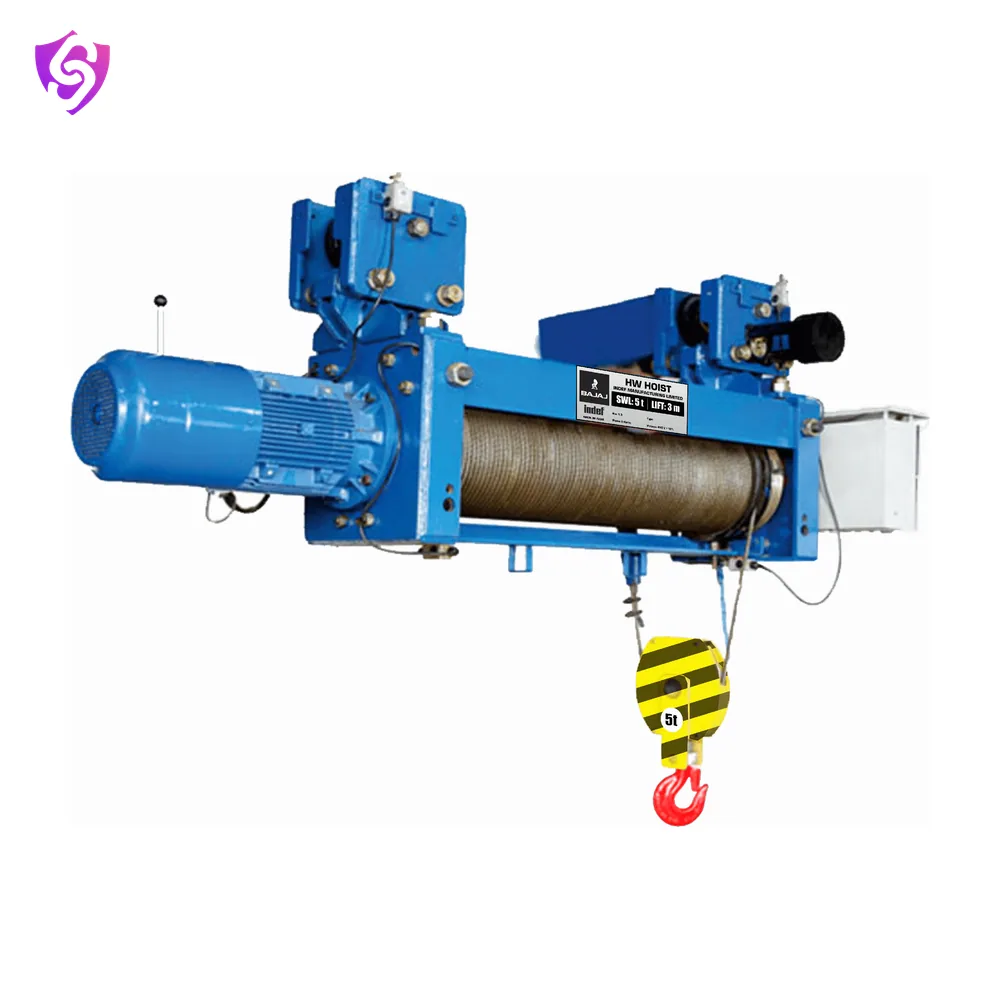

HW Series

Specifications

Key features

• Gearbox is coupled directly with the drum and high-quality service ensures high efficiency.
• High-quality, highly rated, long-lasting motors for economical use.
• Optimised design allows higher approachability on the sides and availability of working space.
• It is available with gear cam rotary limit switch and the design can be modified for short headroom, SGEOT, and DGEOT cranes if required.
• Suitable for heavy-duty application and equipped with a factory set electromechanical overload protection device.
• Comes with a standard SWL range from 1T to 40T and a height of lift up to 50m.
• It is a low headroom and wide range trolley hoist with a Italian built geared device.
• Compactly designed planetary gear box.
• 110V contactor control and hoist, travel drive features IP55 enclosure and insulation class F.
• High lift, high speed and true lift options available.
• Twin drum, (4/2) design ready and can be supplied with a twin hook hoist.
• Thermocouple and encoder adaptation can be provided to match customer requirements.

Applications

• Workshops and gantries
• Construction material lifting
• Production lines
• Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
