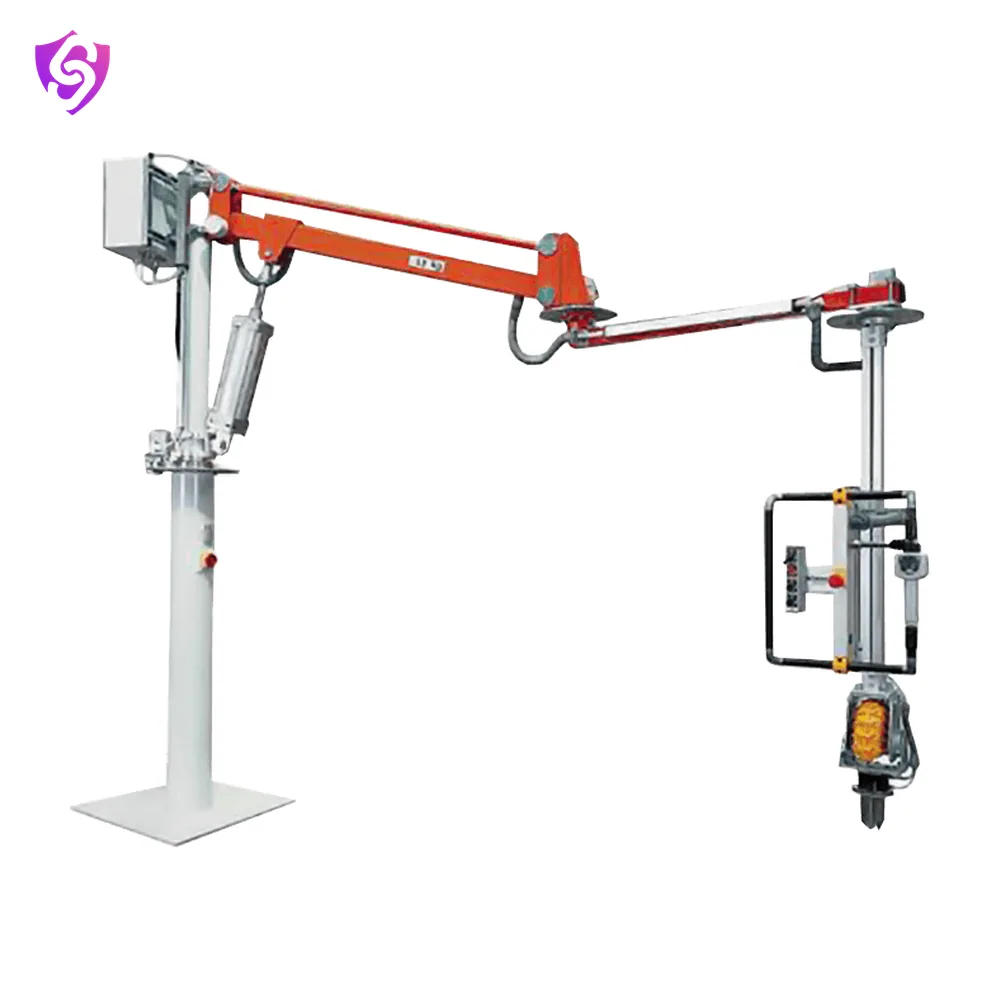

Parallelogram

Specifications

Key features

• All devices are built in accordance with the latest standards and are equipped with all the safety features required to be compliant with current regulations.
• Our unique design and technology ensures torsional rigidity of both girders and end-carriages, favourable utilisation of the available height & space, smooth handling and precise positioning of the loads when supplied with VFD.
• Wheel blocks are made from wear-resistant GGG 70 spheroidal-graphite cast iron with self-lubricating properties.
• Exceptional load capacity with minimum deadweight
• Precise and stable geometry
• Load hook can be raised between the two crane girders to enable maximum lifting height
• Use of specialized software for the crane and girder ensures flexibility for new and existing structures without the need for extensive changes to the same by optimum utilization of height and space.
• Availability of low headroom crab system on request to meet site constraints.
• Joints between the girders and end carriages are manufacture to precise machined tolerances to allow minimum wear and tear.
• Highly efficient device offered with proven components for longevity and reliability.
• S tandard offering gear box and motor for hoisting and travel application are designed and built in Germany.
• Optimised design allows for higher up time and low operation and maintenance costs with consistent performance.

Applications

• Workshops and gantries
• Construction material lifting
• Production lines
• Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
