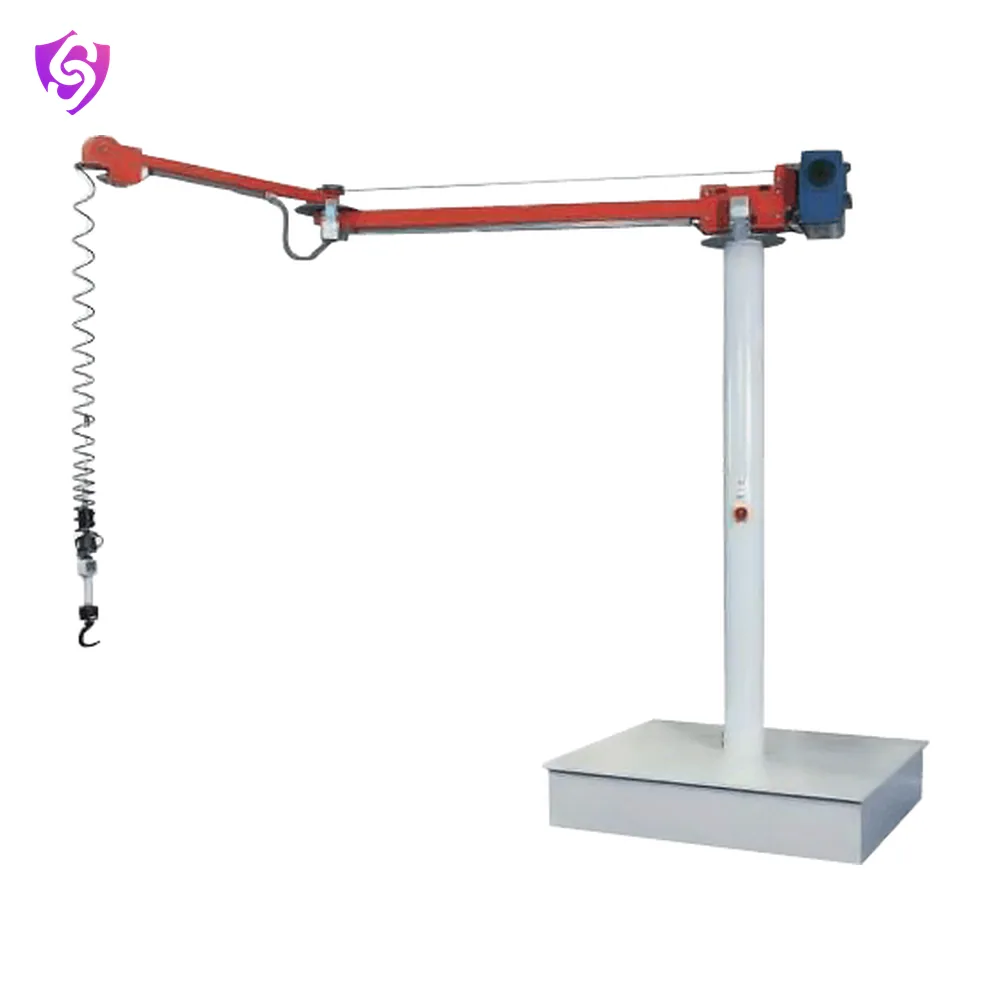

Pivot Arm

Specifications

Key features

• Combination of Balancer D-BP or Speed Hoist with Pivot Arm.
• Allows smooth and exact positioning of loads.
• Use it for quick handling of loads in very short cycle times.
• Mounting the Balancer/Hoist on a pillar means low deadweight.
• Designed as per relevant standards and rules of FEM calculations.
• Equipped with electro-pneumatic brakes, slewing angle sensors and mobile base plate.
• Screw connections allow maximum flexibility.
• Both pillar-mounted and hanging type devices have an identical cylinder.
• Use of maintenance-free bearings, specially designed for ZASCHE.
• Use of special pneumatic cylinders for smooth running.
• Allows an endlessly turning pillar.
• Device runs smoothly.

Applications

• Workshops and gantries
• Construction material lifting
• Production lines
• Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
