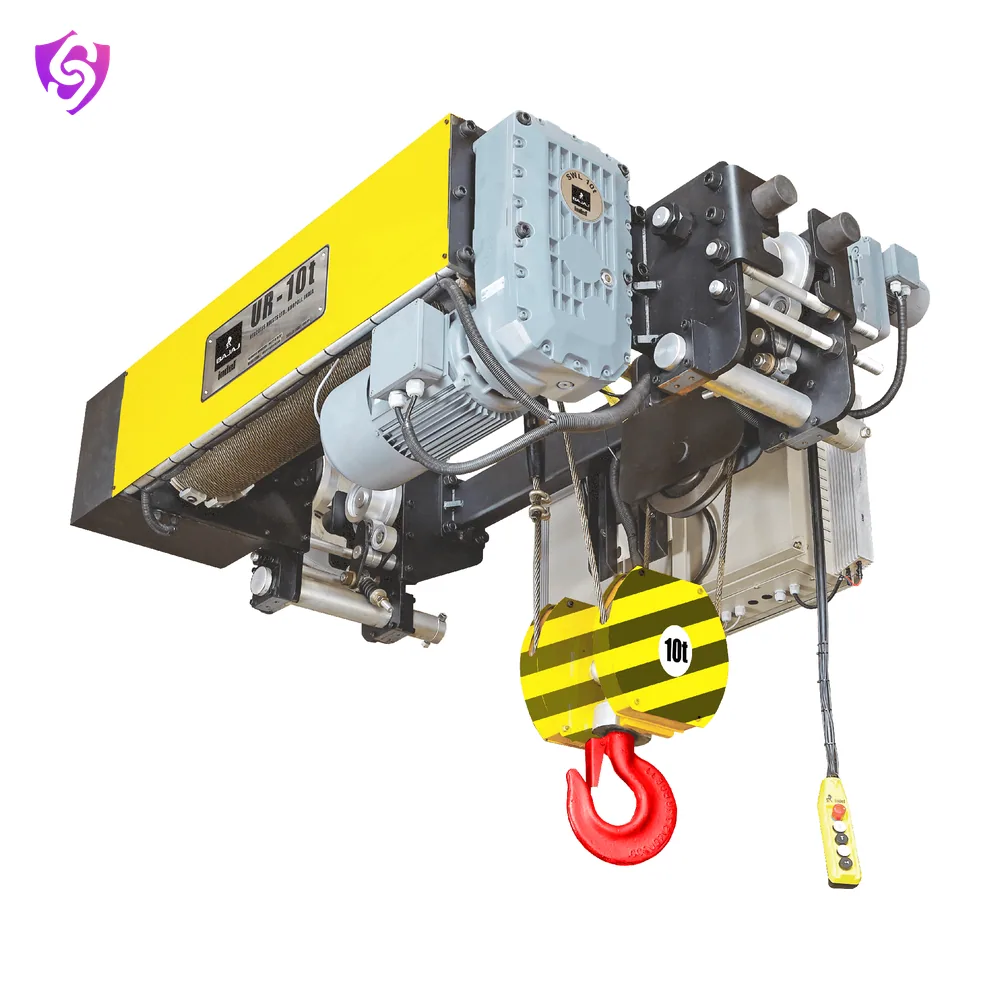

UR Hoist

The UR Wire Rope Hoist is a low noise, long lasting product with a lifetime lubricated gearbox and hardened and ground gears and complies with FEM/ISO standards.

DatasheetSpecifications, standards, care Indef brochure

Test certificate available on request

Specifications

Brand	Indef
Capacity Range	1 Ton to 40 Ton
Lifts	6 mtr to 12 mtr
Mountings	Trolley Suspension Foot Mounted
Types	Standard

Key features

Comes with a standard offering of short headroom execution.
Gearbox is coupled directly with the drum and high-quality service ensures high efficiency.
High start stops per hour for demanding work application.
High-quality, long-lasting motors for economical use with a provision for thermocouple and encoder adaptation if required by the customer.
The hoist is available with VLVS® technology and is most suitable for the SGEOT and DGEOT cranes.
The trolley is suitable for Box Girder with a wide bottom flange and high span accommodation.
SWL ranges from 1T to 40T and height of lift up to 12m.
Low headroom and wide range trolley hoist.
Specially designed, highly efficient German-built geared drive system.
Fact acting, fail-safe AC/DC brakes.
Electromechanical overload protection device.
110V contractor control, drives are enclosed in IP55 with insulation class F.

Applications

Workshops and gantries
Construction material lifting
Production lines
Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
