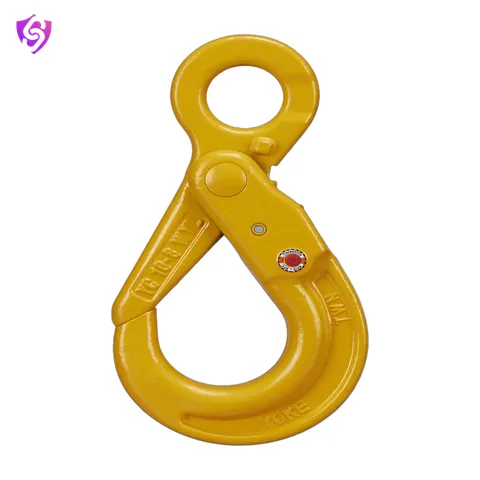

G100 Eye Self Locking Hook with Hidden Trigger
G100 Eye Self Locking Hook with concealed hidden trigger mechanism, forged from super alloy steel for enhanced safety in G100 chain sling systems.
- Test certificate available on request
Sizes and ratings
4 sizes| Size (mm) | W.L.L. (T) | Weight (kg) |
|---|---|---|
| 7/8 | 2.5 | 0.78 |
| 10 | 4 | 1.4 |
| 13 | 6.7 | 2.6 |
| 16 | 10 | 4.6 |
Specifications
| Brand | Mega |
|---|---|
| Material | Forged super alloy steel |
| W.L.L. range | 2.5–10 T |
Key features
- 100% tested at 2.5 times working load limit
- 100% magnaflux crack detection
- Sampling break test for each lot
- Fatigue tested at 1.5 times working load limit for 20000 cycles
- Pinn are 100% eddy-current teat flaw detaction
- Suitable for G100 chain
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
