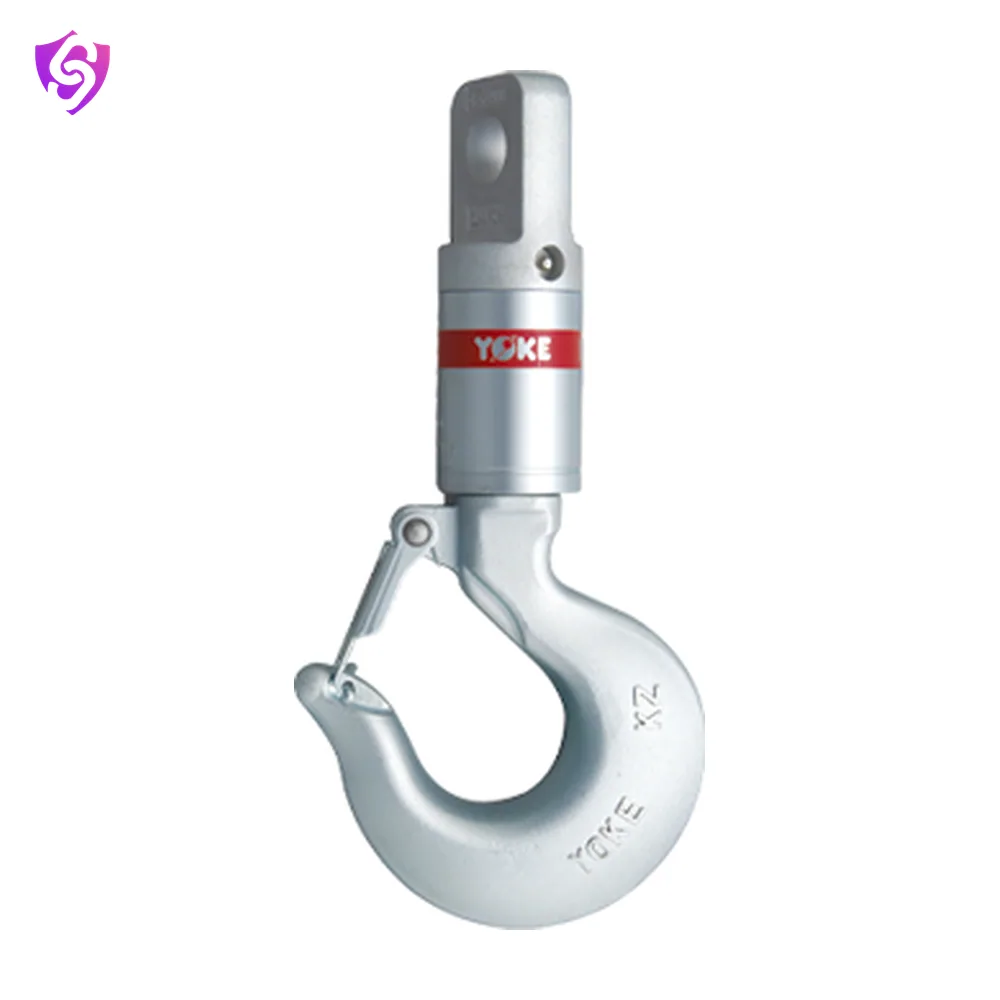

Angular Contact Bearing Swivels - Eye + Hook
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model 8-307
- Test certificate available on request
Sizes and ratings
8 sizes| Code | WLL (tonnes) | For Grade 80 Chain (mm) | Weight (kg) |
|---|---|---|---|
| 8-307-0075 | 0.75 | 6 | 0.7 |
| 8-307-015 | 1.5 | 10 | 1.3 |
| 8-307-03 | 3 | 13 | 2.9 |
| 8-307-05 | 5 | 16 | 5.7 |
| 8-307-085 | 8.5 | 19 | 10.6 |
| 8-307-10 | 10 | 22 | 23.5 |
| 8-307-15 | 15 | 25 | 28.9 |
| 8-307-25 | 25 | 32 | 54.5 |
Specifications
| Brand | Yoke |
|---|---|
| Model | 8-307 |
| WLL range | 0.75–25 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
