Yoke

G-100 Swivel Hook

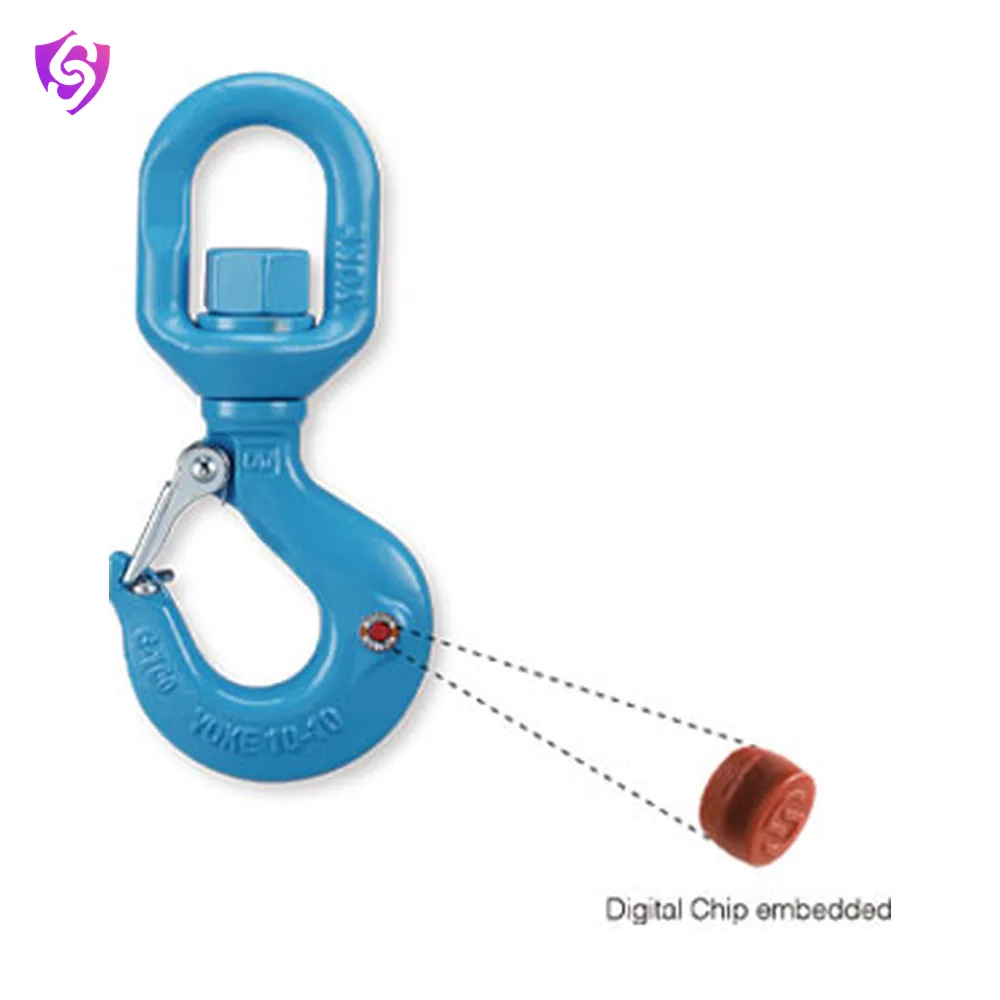

Name: Yoke G-100 Swivel Hook
Brand: Yoke

Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.

Model X-175

WLL (tonnes) · For Grade 100 Chain (mm) · Hook Feature Code

DatasheetSizes, ratings, specifications

Test certificate available on request

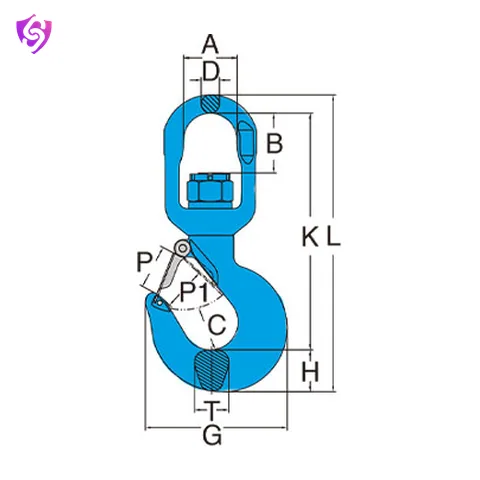

Sizes and ratings

10 sizes

Code	WLL (tonnes)	For Grade 100 Chain (mm)	Hook Feature Code
X-175-05	1.0	5	AA
X-175-06	1.4	6	BB
X-175-07	2.5	7,8	CC
X-175-10	4.0	10	DD
X-175-13	6.7	13	EE
X-175-16	10.0	16	FF
X-175-20	16.0	18 - 20	GG
X-175-22	19.0	22	HH
X-175-26	26.5	26	JJ
X-175-32	40.0	32	KK

Specifications

Brand	Yoke
Model	X-175
Grade	100
WLL range	1–40 tonnes

Applications

Chain sling assemblies
Wire rope sling terminations
Workshop and gantry cranes
Steel and fabrication shops

Care and replacement

Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
