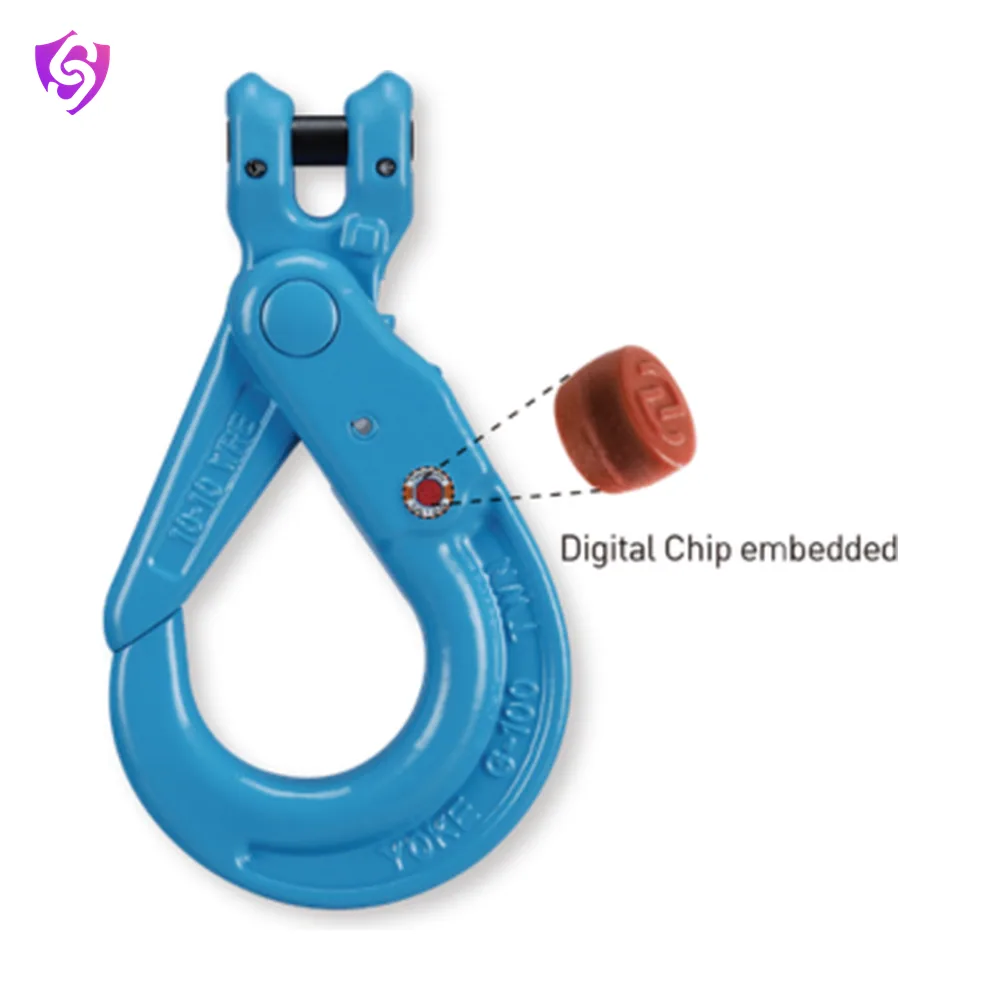

G-100 Clevis Self Locking Hook
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model X-026
- Test certificate available on request
Sizes and ratings
7 sizes| Code | WLL (tonnes) | For Grade 100 Chain (mm) |
|---|---|---|
| X-026-06 | 3200 | 6 |
| X-026-07 | 5700 | 7,8 |
| X-026-10 | 8800 | 10 |
| X-026-13 | 15000 | 13 |
| X-026-16 | 22600 | 16 |
| X-026-20 | 35300 | 20 |
| X-026-22 | 42700 | 22 |
Specifications
| Brand | Yoke |
|---|---|
| Model | X-026 |
| Grade | 100 |
| WLL range | 3200–42700 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
