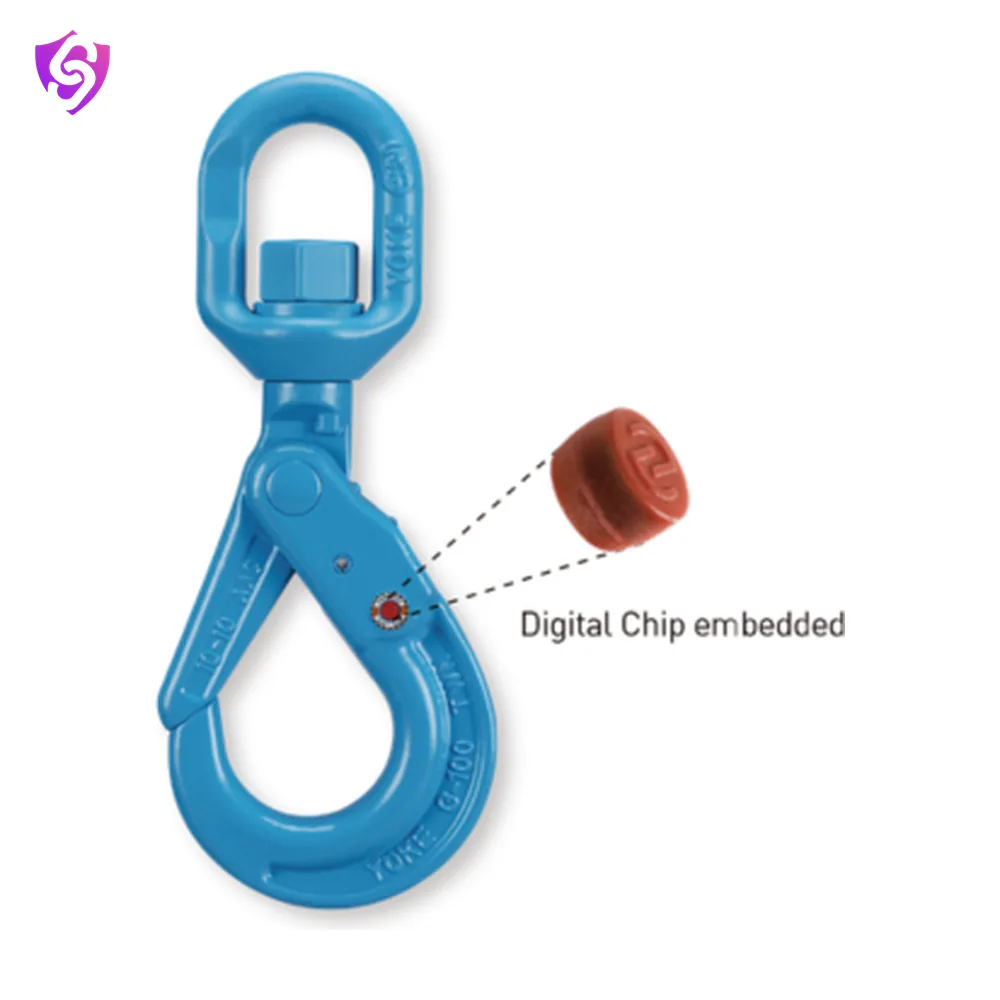

G-100 Swivel Self Locking Hook
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model X-027
- Test certificate available on request
Sizes and ratings
8 sizes| Code | WLL (tonnes) | For Grade 100 Chain (mm) |
|---|---|---|
| X-027-06 | 1.4 | |
| X-027-07 | 2.5 | 6 |
| X-027-10 | 4 | 7,8 |
| X-027-13 | 6.7 | 10 |
| X-027-16 | 10 | 13 |
| X-027-20 | 16 | 16 |
| X-027-22 | 19 | 20 |
| X-027-26 | 26.5 | 22 |
Specifications
| Brand | Yoke |
|---|---|
| Model | X-027 |
| Grade | 100 |
| WLL range | 1.4–26.5 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
