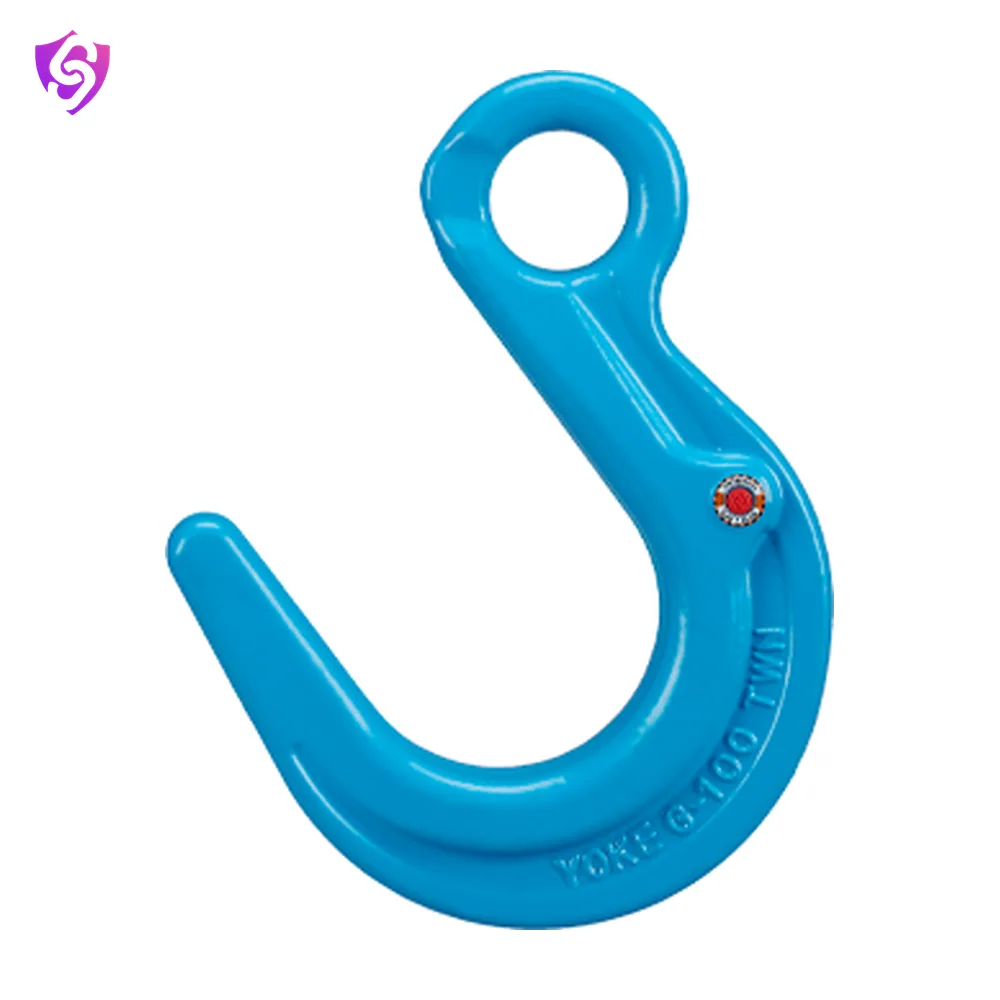

G-100 Eye Foundry Hook
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model X-047
- Test certificate available on request

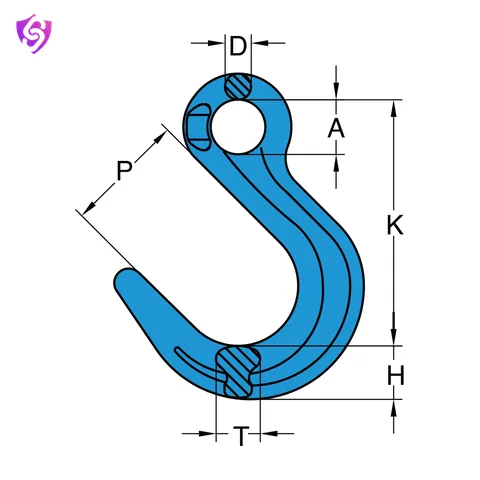

Sizes and ratings
5 sizes| Code | WLL (tonnes) | For Grade 100 Chain (mm) | Weight (kg) |
|---|---|---|---|
| X-047-07 | 2.5 | 7, 8 | 0.8 |
| X-047-10 | 4.0 | 10 | 1.6 |
| X-047-13 | 6.7 | 13 | 2.6 |
| X-047-16 | 10.0 | 16 | 4.5 |
| X-047-20 | 16.0 | 20 | 9.3 |
Specifications
| Brand | Yoke |
|---|---|
| Model | X-047 |
| Grade | 100 |
| WLL range | 2.5–16 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
