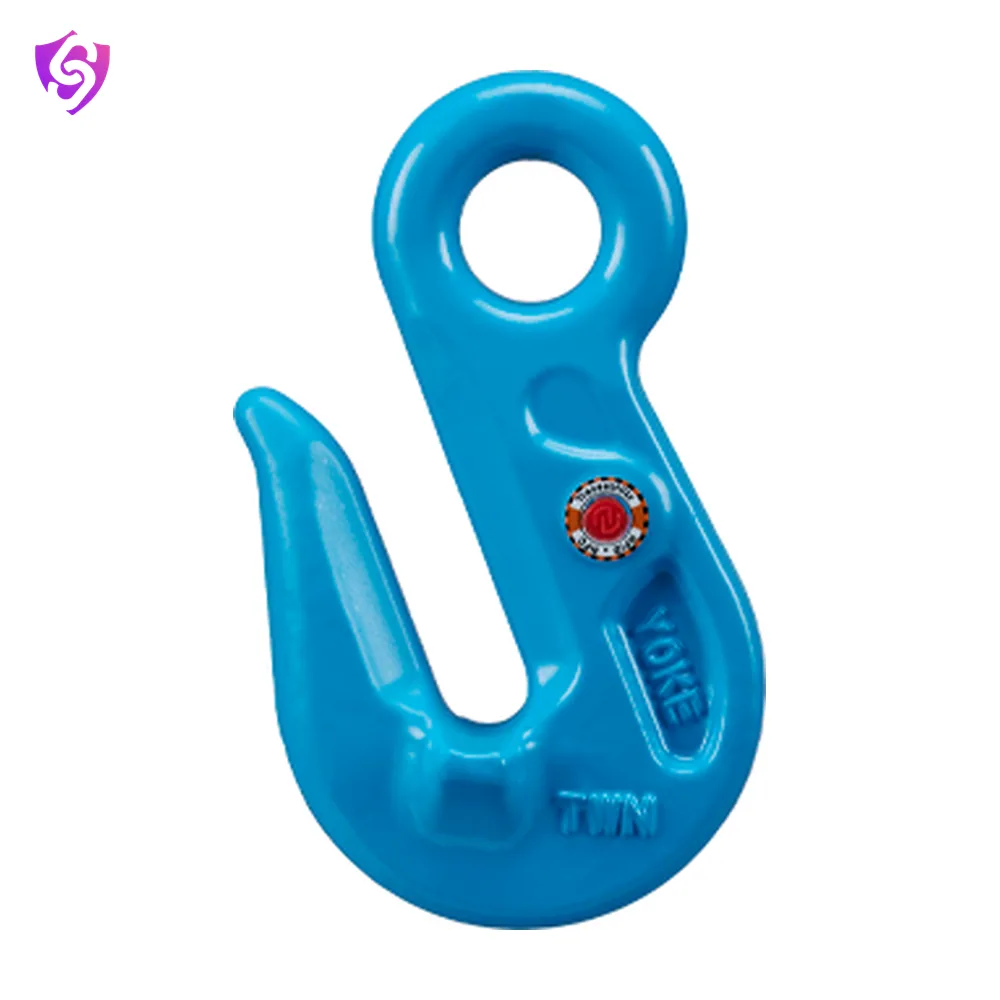

G-100 Eye Grab Hook
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model X-041
- Test certificate available on request

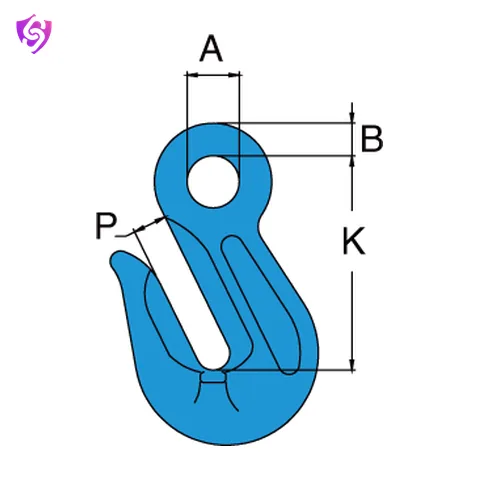

Sizes and ratings
9 sizes| Code | WLL (tonnes) | For Grade 100 Chain (mm) | Weight (kg) |
|---|---|---|---|
| X-041-06 | 1.4 | 6 | 0.2 |
| X-041-07 | 2.5 | 7, 8 | 0.3 |
| X-041-10 | 4.0 | 10 | 0.6 |
| X-041-13 | 6.7 | 13 | 1.4 |
| X-041-16 | 10.0 | 16 | 2.4 |
| X-041-20 | 16.0 | 20 | 4.0 |
| X-041-22 | 19.0 | 22 | 5.0 |
| X-041-26 | 26.5 | 26 | 10.0 |
| X-041-32 | 40.0 | 32 | 24.0 |
Specifications
| Brand | Yoke |
|---|---|
| Model | X-041 |
| Grade | 100 |
| WLL range | 1.4–40 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
