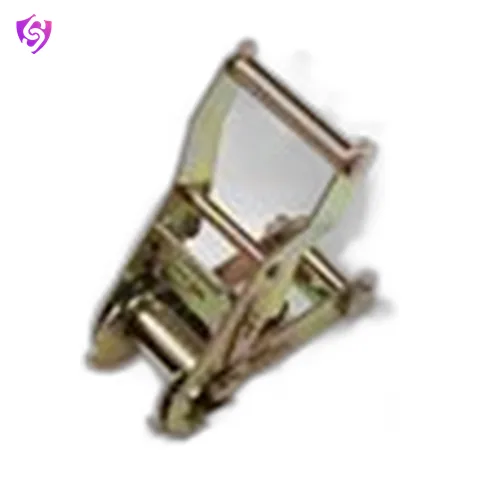

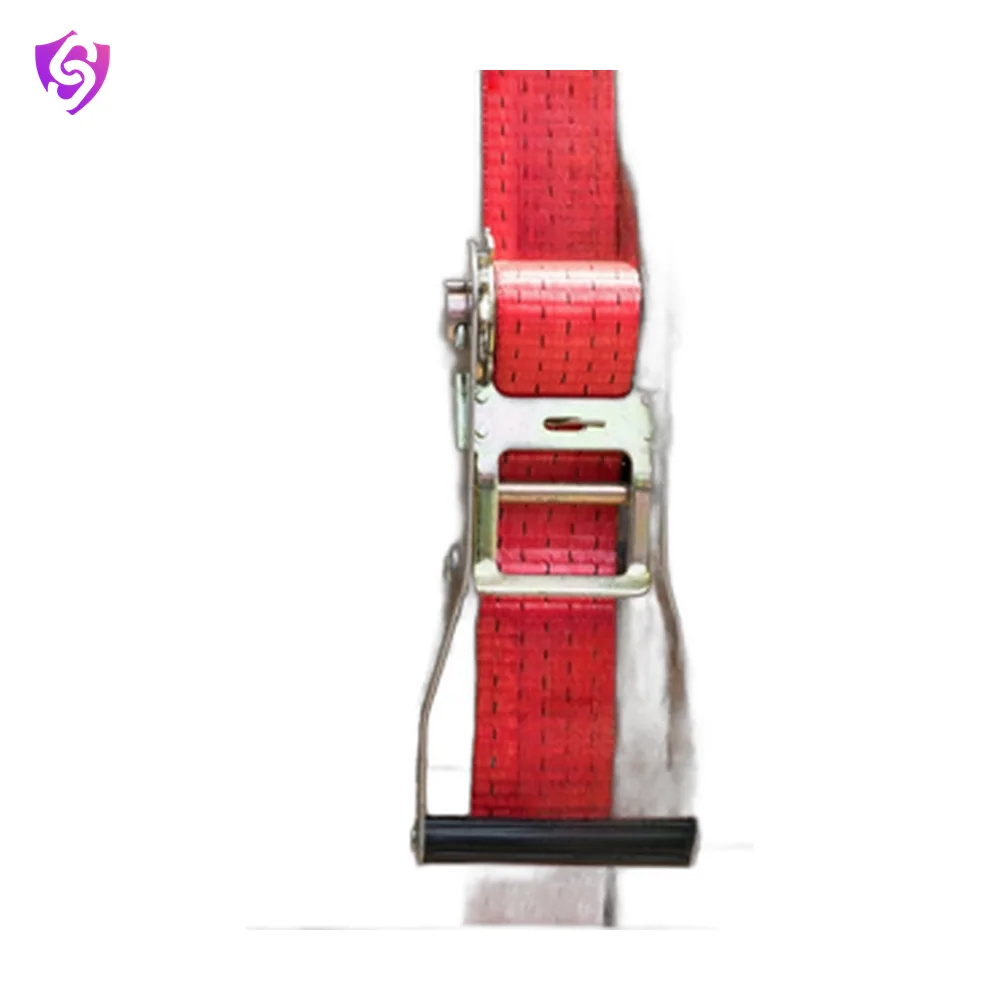

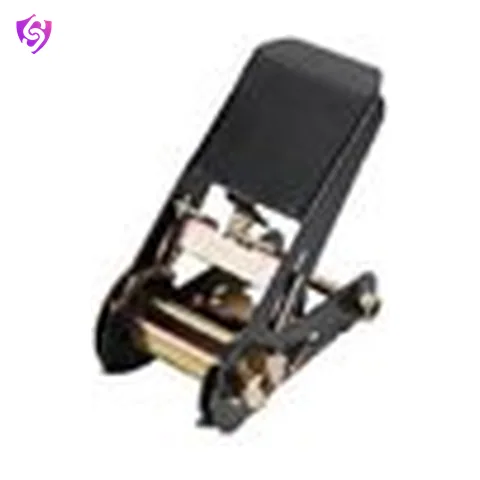

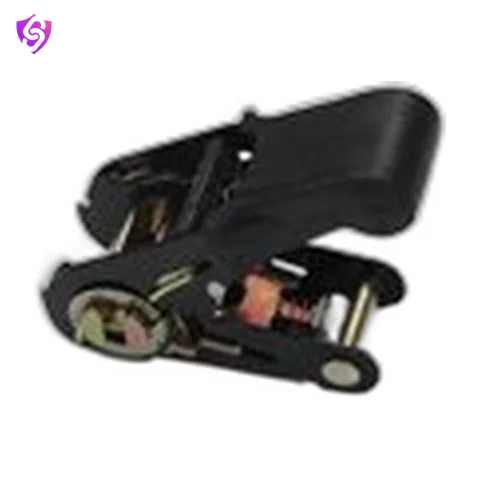

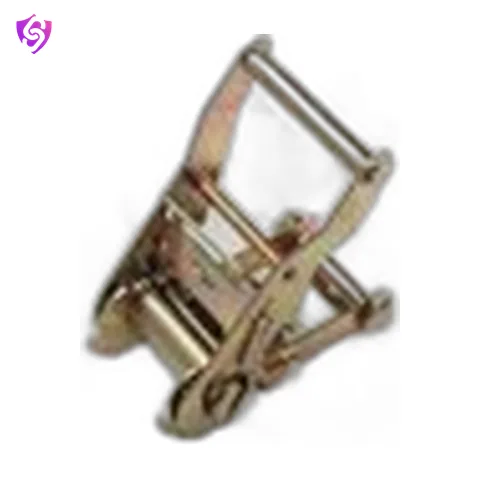

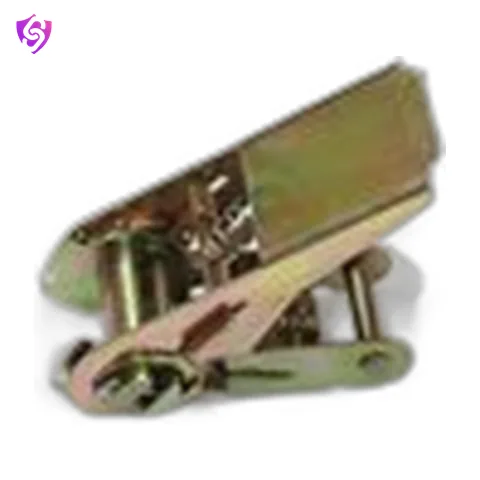

Ratchet Buckle Manufacturers In India : A Ratchet Buckle is basically a mechanical device that comes with tensioning and locking mechanism that is used to tighten the lashing belt and prevent the lashing system from losing so that it can hold and secure cargo, preventing damage to the load.

DatasheetSizes, ratings, specifications
  • Test certificate available on request

Sizes and ratings

14 sizes
SizeRating
25mmRatchet Type Simple Type · Lashing Capacity 400DaN · Breaking Strength 800DaN
25mmRatchet Type Black Ratchet · Lashing Capacity 400DaN · Breaking Strength 800DaN
25mmRatchet Type Black Ratchet Rubber Coated · Lashing Capacity 400DaN · Breaking Strength 800DaN
25mmRatchet Type MS Handle Type · Lashing Capacity 750DaN · Breaking Strength 1500DaN
35mmRatchet Type MS Handle Type · Lashing Capacity 1000DaN · Breaking Strength 2000DaN
35mmRatchet Type Plastic Handle Type · Lashing Capacity 1500DaN · Breaking Strength 3000DaN
50mmRatchet Type Rubber Finger Handle · Ratchet Length 196mm · Lashing Capacity 1000DaN · Breaking Strength 2000DaN
50mmRatchet Type Plastic Handle · Ratchet Length 196mm/ 230mm · Lashing Capacity 1500DaN · Breaking Strength 3000DaN
50mmRatchet Type Aluminum Handle · Ratchet Length 196mm/ 230mm · Lashing Capacity 1500DaN · Breaking Strength 3000DaN
50mmRatchet Type Rubber Finger Handle · Ratchet Length 196mm/ 230mm · Lashing Capacity 2500DaN · Breaking Strength 5000DaN
50mmRatchet Type Plastic Handle Type · Ratchet Length 196mm/ 230mm · Lashing Capacity 2500DaN · Breaking Strength 5000DaN
50mmRatchet Type Aluminium Handle · Ratchet Length 196mm/ 230mm · Lashing Capacity 2500DaN · Breaking Strength 5000DaN
50mmRatchet Type Ergonomic Type · Lashing Capacity 2500DaN · Breaking Strength 5000DaN
75mmRatchet Type Aluminium Handle · Lashing Capacity 5000DaN · Breaking Strength 10000DaN

Specifications

BrandGlobal

Applications

  • Truck and trailer loads
  • Container stuffing
  • General site rope work
  • Rope haulage

Care and replacement

Withdraw a lashing with a cut or worn belt, a damaged ratchet or a missing label. Keep rope out of sunlight and chemicals when it is not in use.
