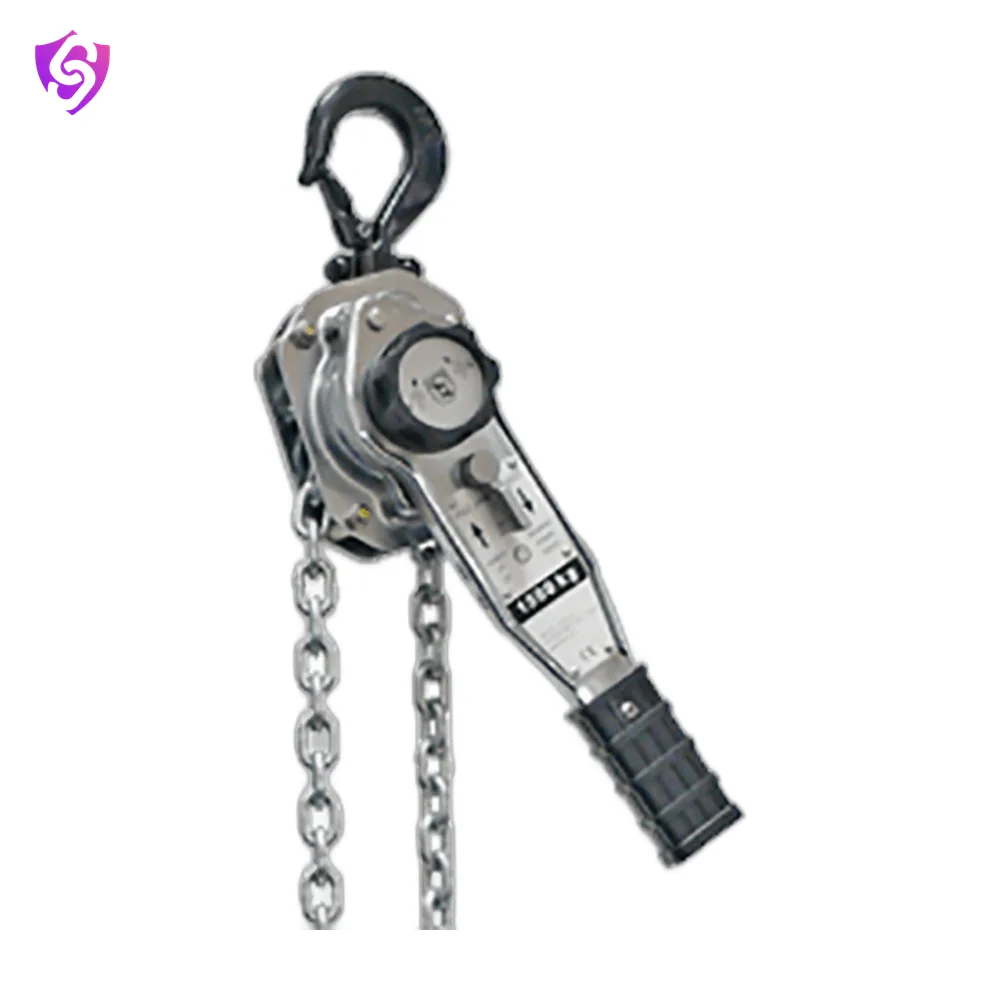

Stier RLH

Specifications

Key features

• Allows easy free chaining and with selector level set at the middle position, pulling the load chain and hook becomes effortless.
• High safety factor for the load chain.
• Double guide rollers ensure higher resistance to inclined loading.
• Capacity ranges from 0.75T to 9T.
• Robust and compact product.
• Integrated freewheel chain guide.
• Galvanized and tempered high tensile load chain according to DIN EN 818-7-T.
• Ergonomic handle, additional screw connection.
• Non-slip hand wheel.
• Drop-forged load hook with a closed and fitted safety latch.
• Up to 5T in a single strand.
• The chain guide leads effectively the load chain into the sprocket wheel without any jamming or sticking.

Applications

• Pulling and tensioning
• Alignment and erection
• Shutdown maintenance
• Vehicle recovery

Care and replacement

Never extend the lever with a pipe. Check the brake, the chain and both hooks before use, and keep the hoist clean and lightly oiled.
