VA Manual Lever Hoist
The VA Manual Lever Hoist is a compact, lightweight yet durable lever hoist (0.75–9 tons) featuring a double-pawl Weston style automatic brake for safety and reliability.
EN 13157
- Test certificate available on request
Sizes and ratings
17 sizes| Model | Unit | VA-0.75T | VA-1.5T |
|---|---|---|---|
| Capacity load | (t) | 0.75 | 1.5 |
| Standard lift | (m) | 1.5 | 1.5 |
| Test load | (t) | 11 | 22.5 |
| Effort required to lift max load | (N) | 140 | 220 |
| Load chain Number of falls | 1 | 1 | |
| Load chain specification | (mm) | 6 | 8 |
| Net weight | (kg) | 7.5 | 11.5 |
| Gross weight | (kg) | 8 | 12 |
| Packing size | (cm) | 35.5×14×16.5 | 46.5×15.5×19 |
| Add 1m weight | (kg) | 0.8 | 1.4 |

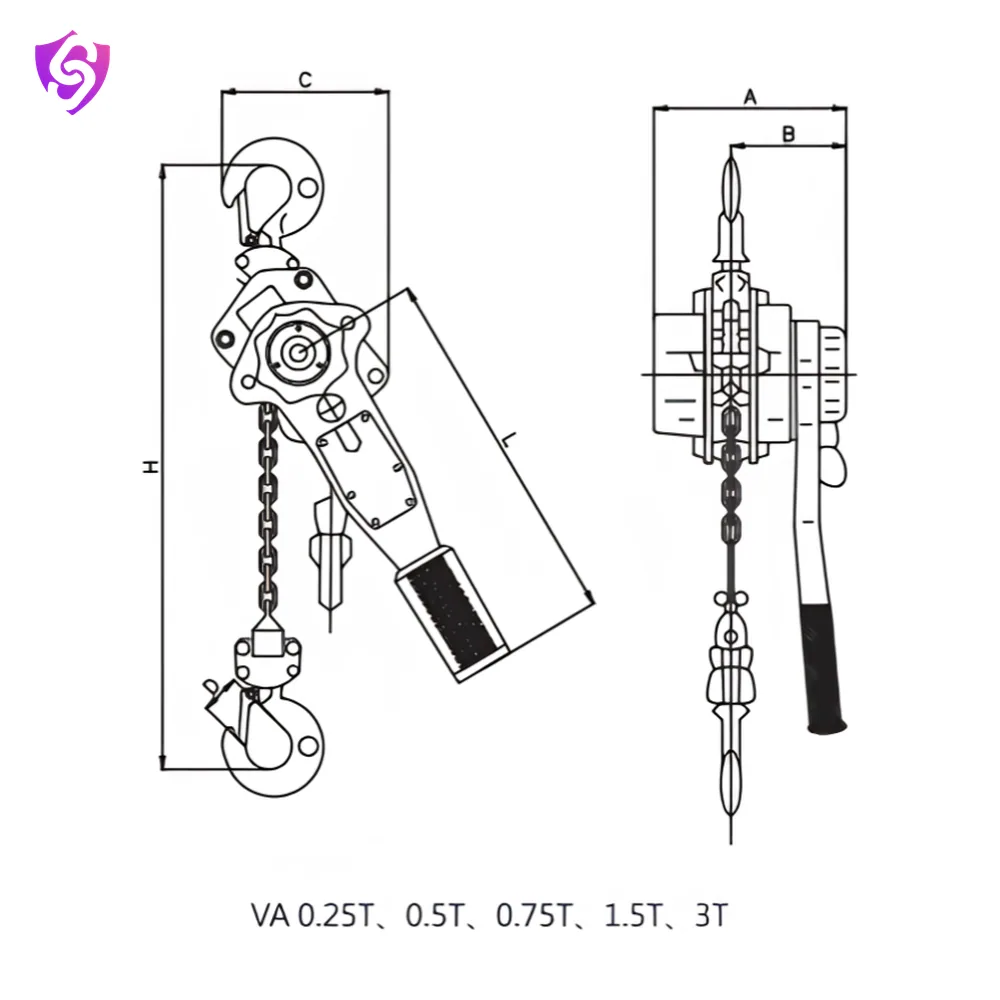

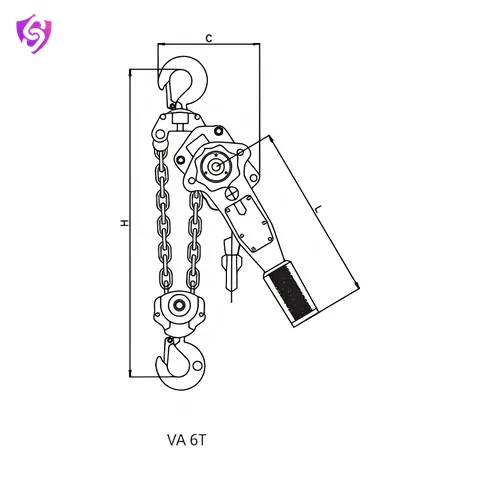

| Dimensions (mm) | A | 145 | 175 |
| Dimensions (mm) | B | 86 | 100 |
| Dimensions (mm) | C | 122 | 130 |
| Dimensions (mm) | D | 37 | 45 |
| Dimensions (mm) | H | 320 | 380 |
| Dimensions (mm) | H | 285 | 370 |
| Dimensions (mm) | K | 30 | 36 |
Specifications
| Brand | Mega |
|---|---|
| Model | VA |
| Usage/Application | Lever hoisting; forged steel hooks with safety latches, high tensile alloy steel chain |
| Color | Self color / HD Galvanised / Gold |
| Material | Alloy Steel |
| Country Of Origin | India |
| Standard | India Standard |
| EN13157 (Safety factor 4 | 1) |
Key features
- Compact, light yet durable; double-pawl brake system
- Heat-treated steel plates, gears and shafts
- Free wheeling mechanism for quick chain adjustments
- Weston style automatic load brake with double pawls
- 360° rotating handle for confined spaces
- Fatigue tested at 1.5 times WLL to 2000 cycles
Applications
- Pulling and tensioning
- Alignment and erection
- Shutdown maintenance
- Vehicle recovery
Care and replacement
Never extend the lever with a pipe. Check the brake, the chain and both hooks before use, and keep the hoist clean and lightly oiled.
