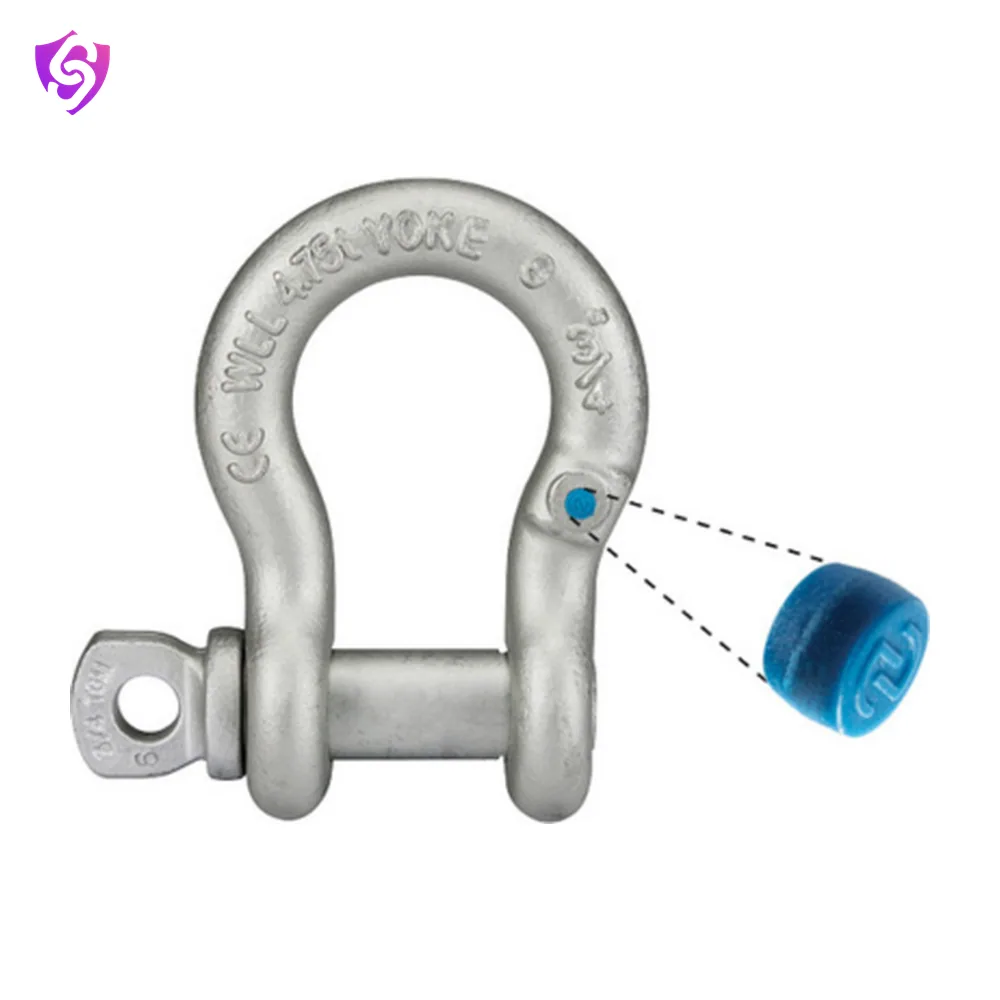

Shackle 8-837
Bow and dee shackles with screw collar pins, from 3/8 in to 2-1/2 in, each marked with its working load limit.
- Test certificate available on request
Sizes and ratings
16 sizes| Code | WLL (tonnes) | Normina Size |
|---|---|---|
| 8-837-05 | 0.3 | 5 |
| 8-837-06 | 0.5 | 6 |
| 8-837-08 | 0.75 | 8 |
| 8-837-10 | 1 | 10 |
| 8-837-11 | 1.5 | 11 |
| 8-837-13 | 2 | 13 |
| 8-837-16 | 3.25 | 16 |
| 8-837-19 | 4.75 | 19 |
| 8-837-22 | 6.5 | 22 |
| 8-837-26 | 8.5 | 26 |
| 8-837-28 | 9.5 | 28 |
| 8-837-32 | 12 | 32 |
| 8-837-36 | 13.5 | 36 |
| 8-837-38 | 17 | 38 |
| 8-837-45 | 25 | 45 |
| 8-837-50 | 35 | 50 |
Specifications
| Brand | Yoke |
|---|---|
| Model | 8-837 |
| WLL range | 0.3–35 tonnes |
Applications
- Rigging for crane lifts
- Connecting slings to lifting points
- Ports and shipyards
- Construction and erection
Care and replacement
Before each lift, check that the pin is fully screwed home and that the body is not bent, stretched, cracked or worn by more than a tenth of its original section. Replace a shackle whose WLL marking can no longer be read. Never substitute a bolt for the pin.
