Yoke

Shackle DA-838

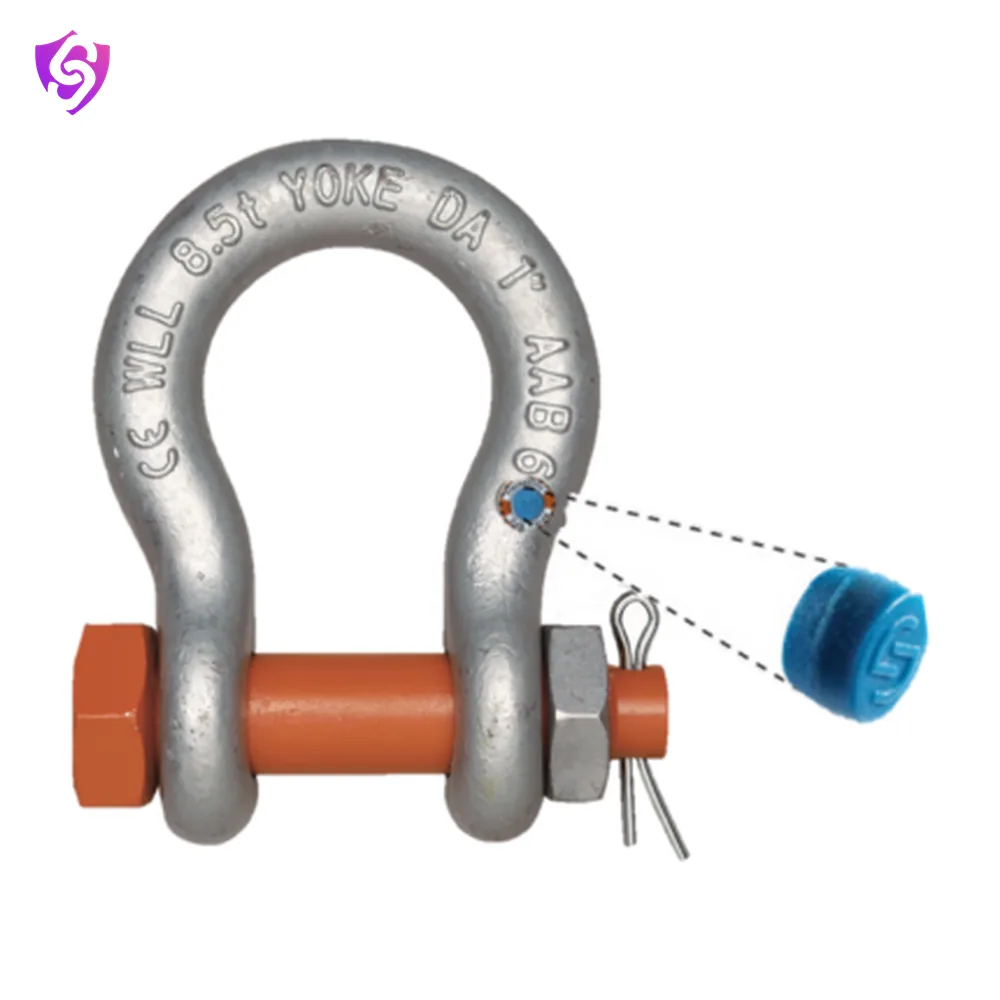

Name: Yoke Shackle DA-838
Brand: Yoke

Bow and dee shackles with screw collar pins, from 3/8 in to 2-1/2 in, each marked with its working load limit.

WLL (tonnes) · Normina Size

DatasheetSizes, ratings, specifications

Test certificate available on request

Sizes and ratings

11 sizes

Code	WLL (tonnes)	Normina Size
DA-838-13	2	13
DA-838-16	3.25	16
DA-838-19	4.75	19
DA-838-22	6.5	22
DA-838-26	8.5	26
DA-838-28	9.5	28
DA-838-32	12	32
DA-838-36	13.5	36
DA-838-38	17	38
DA-838-45	25	45
DA-838-50	35	50

Specifications

Brand	Yoke
Model	DA-838
WLL range	2–35 tonnes

Applications

Rigging for crane lifts
Connecting slings to lifting points
Ports and shipyards
Construction and erection

Care and replacement

Before each lift, check that the pin is fully screwed home and that the body is not bent, stretched, cracked or worn by more than a tenth of its original section. Replace a shackle whose WLL marking can no longer be read. Never substitute a bolt for the pin.
