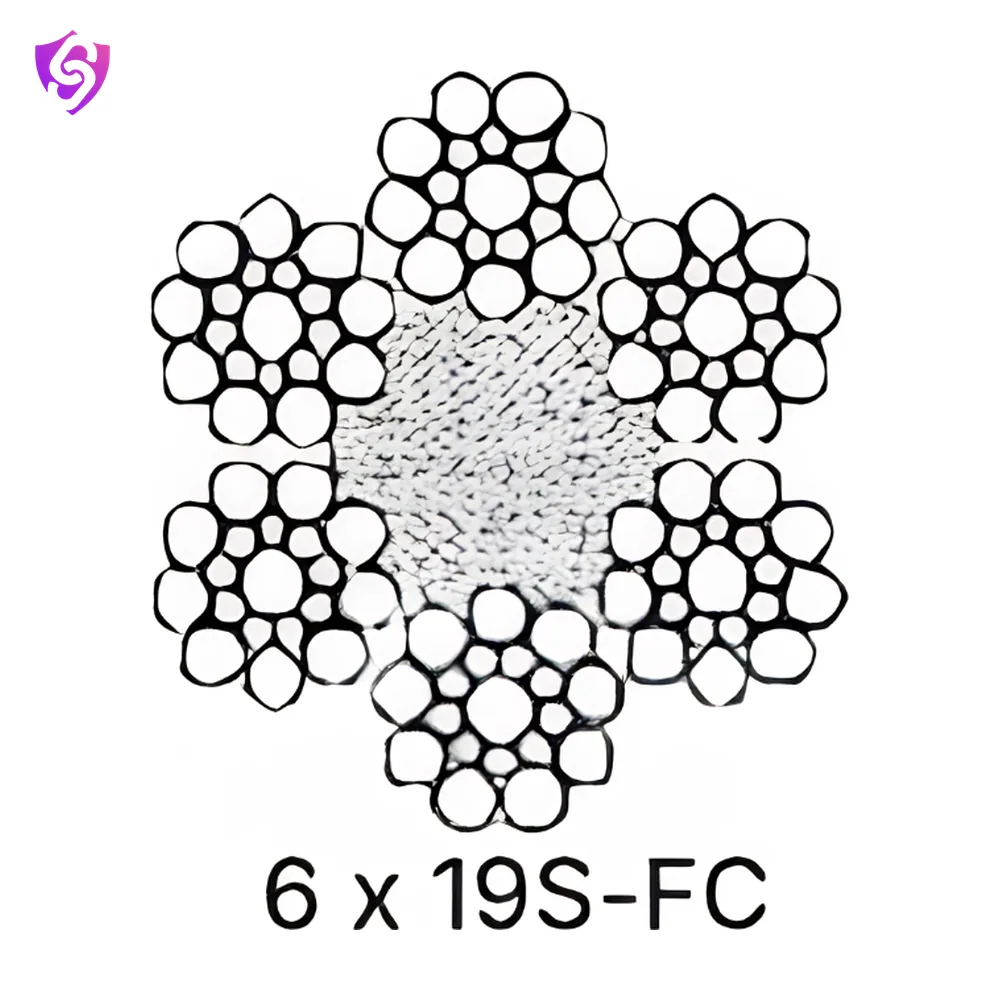

6×19 Seale Wire Rope
Bright, galvanised, stainless and PVC coated steel wire rope, in 6 × 19 and 6 × 36 constructions with a steel or fibre core.
EN 12385
- Test certificate available on request
Sizes and ratings
23 sizes| Nominal Rope Diameter (mm) | Approx Weight FC (kg/100m) | MBL 1570 FC (kN) | MBL 1770 FC (kN) |
|---|---|---|---|
| 6 | 13.7 | 18.7 | 21.0 |
| 7 | 18.6 | 25.4 | 28.6 |
| 8 | 24.3 | 33.2 | 37.4 |
| 9 | 30.8 | 42.0 | 47.3 |
| 10 | 38.0 | 51.8 | 58.4 |
| 11 | 46.0 | 62.7 | 70.7 |
| 12 | 54.7 | 74.6 | 84.1 |
| 13 | 64.2 | 87.6 | 98.7 |
| 14 | 74.5 | 102 | 114 |
| 16 | 97.3 | 133 | 150 |
| 18 | 123 | 168 | 189 |
| 20 | 152 | 207 | 234 |
| 22 | 184 | 251 | 283 |
| 24 | 219 | 298 | 336 |
| 26 | 257 | 350 | 395 |
| 28 | 298 | 406 | 458 |
| 32 | 389 | 531 | 598 |
| 36 | 492 | 671 | 757 |
| 40 | 608 | 829 | 935 |
| 44 | 736 | 1000 | 1130 |
| 48 | 876 | 1190 | 1350 |
| 52 | 1030 | 1400 | 1530 |
| 56 | 1190 | 1620 | 1830 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Cranes, hoists, elevators, general lifting – Seale strand construction for better abrasion resistance |
| Country Of Origin | India |
| Color | Bright (Ungalvanised) / Galvanised |
| Standard | IS / EN 12385 |
| Material | High Carbon Steel (Carbon 0.4–1%, Manganese 0.3–1%) |
Applications
- Cranes and hoists
- Winches and haulage
- Guying and structural work
- Sling making
Care and replacement
Keep rope lubricated and off the ground. Inspect for broken wires, reduced diameter, corrosion, kinks and bird-caging, and replace it when its maker's discard criteria are reached.
