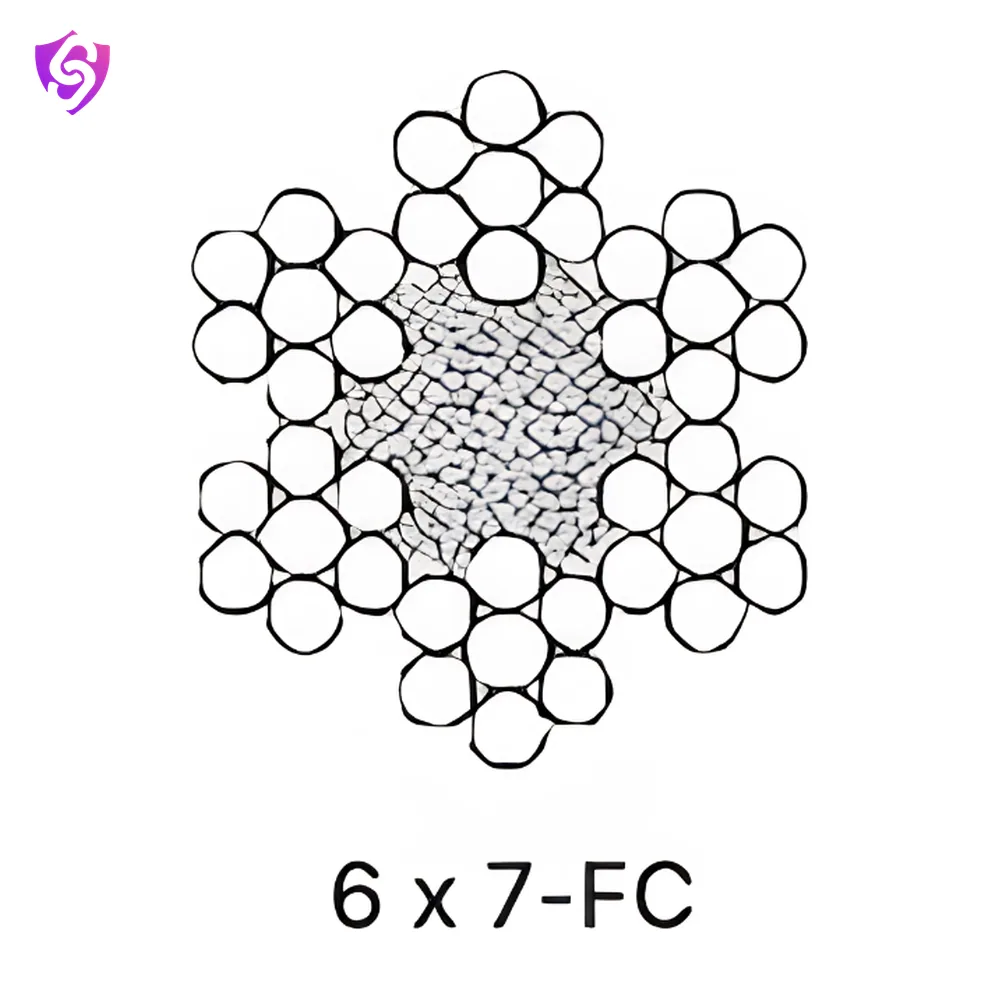

6×7 Wire Rope
Wire Rope Types – 6 × 19M-FC, 6 × 19M-WSC, 6 × 19M-IWRC
- Test certificate available on request
Sizes and ratings
24 sizes| Nominal Rope Diameter (mm) | Approx Weight FC (kg/100m) | MBL 1570 FC (kN) | MBL 1770 FC (kN) |
|---|---|---|---|
| 2 | 1.40 | 2.08 | 2.35 |
| 3 | 3.16 | 4.69 | 5.29 |
| 4 | 5.62 | 8.34 | 9.40 |
| 5 | 8.78 | 13.0 | 14.7 |
| 6 | 12.6 | 18.8 | 21.2 |
| 7 | 17.2 | 25.5 | 28.8 |
| 8 | 22.5 | 33.4 | 37.6 |
| 9 | 28.4 | 42.2 | 47.6 |
| 10 | 35.1 | 52.1 | 58.8 |
| 11 | 42.5 | 63.1 | 71.1 |
| 12 | 50.5 | 75.1 | 84.6 |
| 13 | 59.3 | 88.1 | 99.3 |
| 14 | 68.8 | 102 | 112 |
| 16 | 89.9 | 133 | 150 |
| 18 | 114 | 169 | 190 |
| 20 | 140 | 208 | 235 |
| 22 | 170 | 252 | 284 |
| 24 | 202 | 300 | 338 |
| 26 | 237 | 352 | 397 |
| 28 | 275 | 409 | 461 |
| 32 | 359 | 534 | 602 |
| 36 | 455 | 676 | 762 |
| 40 | 562 | 834 | 940 |
| 44 | 680 | 1010 | 1140 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Lifting & Rigging |
| Color | Blue |
Key features
- Wire Rope Types – 6 × 19M-FC, 6 × 19M-WSC, 6 × 19M-IWRC
Applications
- Cranes and hoists
- Winches and haulage
- Guying and structural work
- Sling making
Care and replacement
Keep rope lubricated and off the ground. Inspect for broken wires, reduced diameter, corrosion, kinks and bird-caging, and replace it when its maker's discard criteria are reached.
