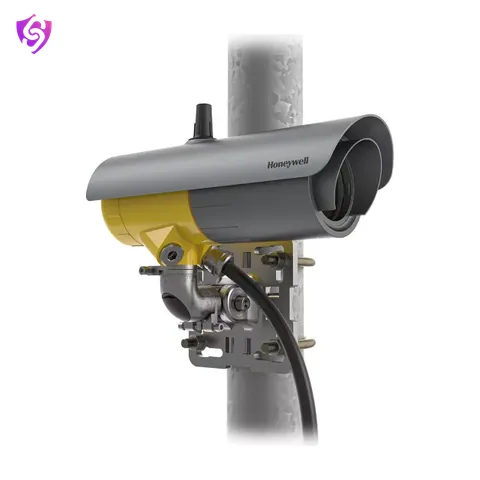

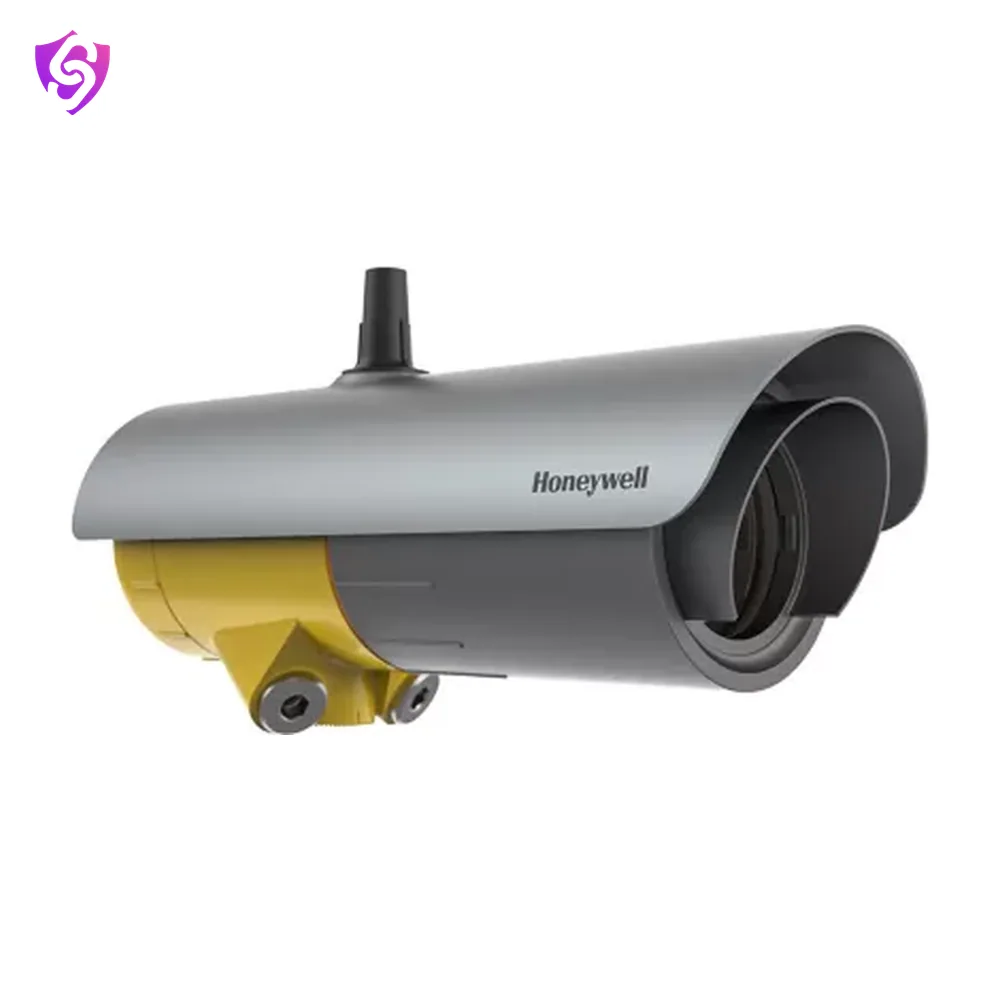

Searchline Excel™ Edge Open Path Gas Detector

Name: Honeywell Searchline Excel™ Edge Open Path Gas Detector
Brand: Honeywell

Elevate your gas detectors’ potential with Honeywell's expert maintenance services!

EN 50270EN 61000

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Alarm Settings	High 3 LEL.m / Low 1 LEL.m / Min 0.5 LEL.m
Features	Bluetooth® enabled
Wireless Technology	Bluetooth (Range up to 20m) / Bluetooth® (range up to 20 m (66 ft)
Visual Indicators	Blue: Bluetooth Pairing Mode / Green: Normal / Red: Alarm / Yellow: Fault
Repeatability	±0.4 LEL.m
Weight range	Rx: 6.1 kg (13.4 lbs) / Tx: 6.0 kg (13.2 lb)
Path Length	60 to 330 m
Dimension	4.06 in dia x 12.8 in x 7.09 in
Sensor Range	60 m to 330 m (196 to 1,082 ft)
Humidity Range	0 to 99% RH (Non-Condensing) / 0–99 % RH Non-condensing
Analog Output Signal Type	4-20mA standard
Relay Rated Load	Max. 32 Vdc/ac, max. 2 A resistive load
Relay Output Configuration	Relay 1 is Alarm Level 1, Relay 2 is Alarm Level 2, Relay 3 Indicates Faults
Relay Activation Settings	Single Pole Double Throw (SPDT)
Sensor Type	Open Path Infrared
Sensing Method	Near Band Infrared
Output Signal Type	4 to 20 mA with HART®
Number of Relay Outputs	3
Mounting	Universal Mounting Bracket Included
Maximum Pressure	105.5 kPa (1055 mBar, non-compensated)
Gas Type	Flammable Hydrocarbon
Warm Up Time	Less than 1 Hour (Fully Stabilized) / Less than 5 min (Operational)
Speed of Response	T90 < 3 sec
Measuring Range	0-5 LEL.m
Minimum Temperature	-55 °C (-67 °F) / -55°C
Storage Temperature	-55 to +75°C
Analog Output Signal Current	4 to 20 mA
Power Requirement	24 VDC
Power Consumption	Receiver: 3.0W (Above +30°C) / Receiver: 4.8W (+30°C to -30°C) / Receiver: 7.4W (Below -30°C) / Transmitter: 11.8W (Below -30°C) / Transmitter: 3.8W (Above +30°C) / Transmitter: 5.6W (+30°C to -30°C)
Battery Run Time	10 Years Lifetime
Standards	EN 50270, EN 61000-6, CSA 6101

Key features

Fast response to flammable hydrocarbon gas even in low visibility
Advanced diagnostics including window clarity and alignment accuracy to enable maximum uptime
