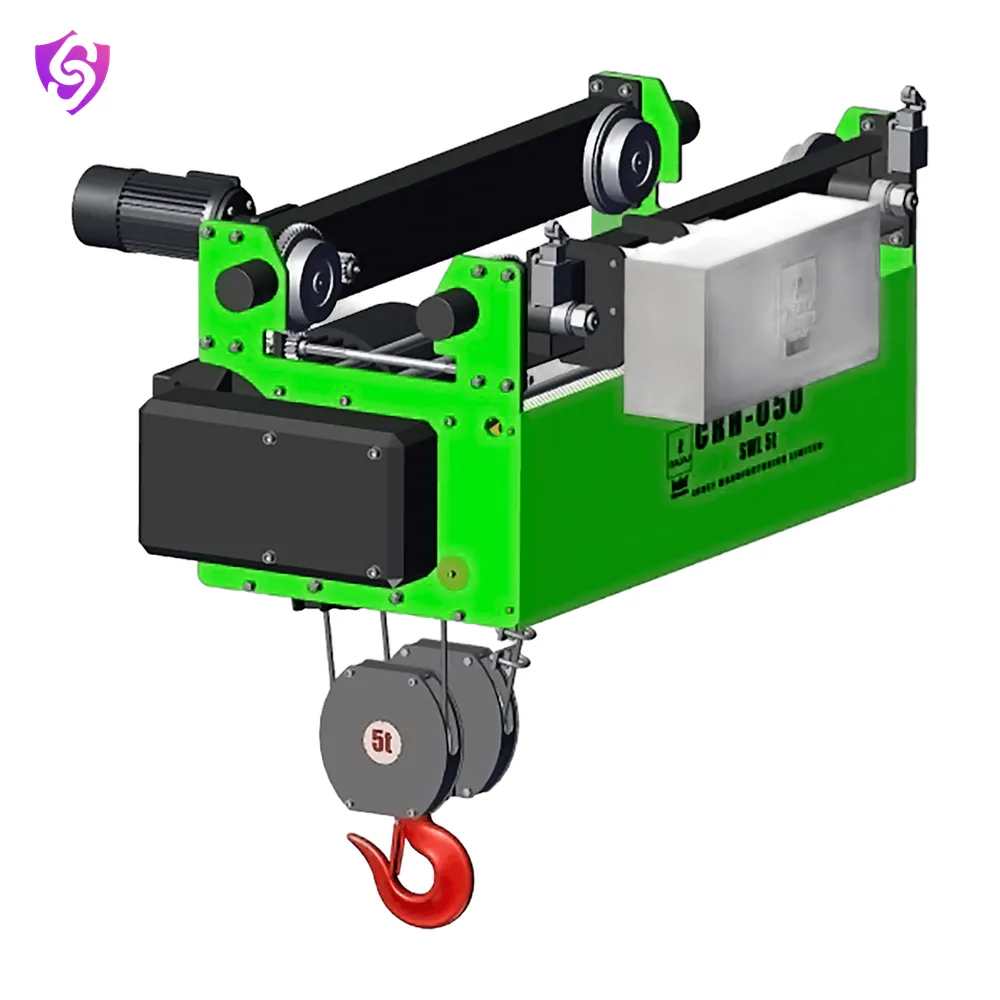

CRH Wire Rope Hoist

Specifications

Key features

• Durable components like sealed bearings, compacted rope, and CI rope guide reduce wear and service needs.
• Flexible configuration with optional VFDs, load display, festoon systems, and outdoor canopy for varied applications.
• IP55 motor with Class F insulation delivers dependable performance in demanding conditions.
• Operator-friendly pendant control with 110V circuit; radio remote available for added flexibility.
• Rated 4/1 fall configuration with forged single-hook block and compact rope design.
• Hoisting speed 5 m/min and trolley speed 17 m/min for consistent performance.
• Moderate headroom monorail trolley for flange widths 180–350 mm, thickness up to 20 mm.
• 415V, 3-phase, 50 Hz power compatibility with selectable duty classes for medium operations.
• Lowers installation and lifecycle costs through simplified design and longer-lasting components.
• Enhances safety with mechanical overload cut-off, fail-safe braking, and comprehensive electrical protection.
• Increases application flexibility with custom lift heights and optional add-on features.
• Compact trolley and balanced wheel loads allow quick, hassle-free installation on single-girder box-type cranes.

Applications

• Workshops and gantries
• Construction material lifting
• Production lines
• Stores and loading bays

Care and replacement

Test the limit switches, the brake and the pendant before each shift. Have the hoist examined by a competent person at the interval the factory rules set.
