D Shackle
D Shackle Manufacturer: D shackle is a U-shaped piece of metal with a screw pin used to secure a rope or chain to one end of another rope or chain.
- Test certificate available on request
Sizes and ratings
15 sizes| Size | Rating |
|---|---|

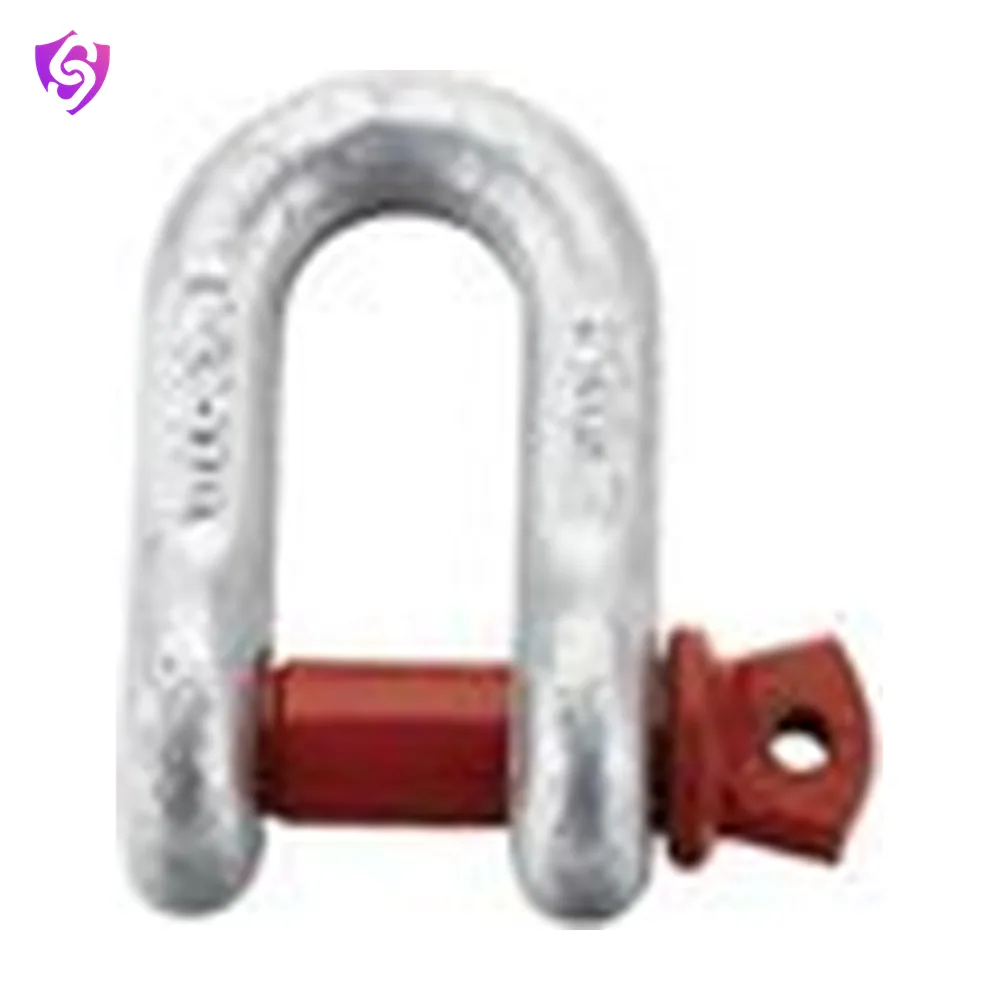

| 4.75 ton | D Shackle (Screw Pin Type) |
| 6.5 ton | D Shackle (Screw Pin Type) |
| 8.5 ton | D Shackle (Screw Pin Type) |
| 9.5 ton | D Shackle (Screw Pin Type) |
| 12 ton | D Shackle (Screw Pin Type) |
| 13.5 ton | D Shackle (Screw Pin Type) |
| 17 ton | D Shackle (Screw Pin Type) |

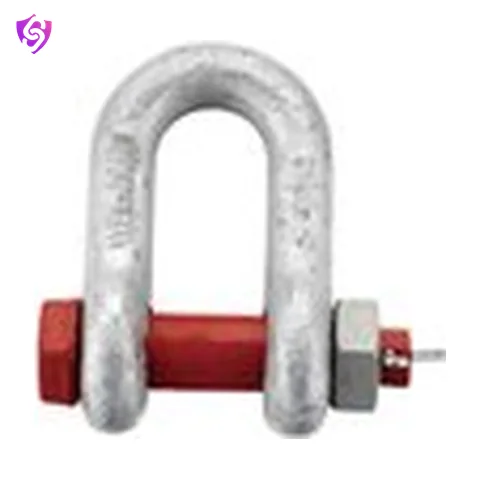

| 3.2 ton | D Shackle (Nut Bolt Type) |
| 4.75 ton | D Shackle (Nut Bolt Type) |
| 6.5 ton | D Shackle (Nut Bolt Type) |
| 8.5 ton | D Shackle (Nut Bolt Type) |
| 9.5 ton | D Shackle (Nut Bolt Type) |
| 12 ton | D Shackle (Nut Bolt Type) |
| 13.5 ton | D Shackle (Nut Bolt Type) |
| 17 ton | D Shackle (Nut Bolt Type) |
Specifications
| Brand | Global |
|---|
Applications
- Rigging for crane lifts
- Connecting slings to lifting points
- Ports and shipyards
- Construction and erection
Care and replacement
Before each lift, check that the pin is fully screwed home and that the body is not bent, stretched, cracked or worn by more than a tenth of its original section. Replace a shackle whose WLL marking can no longer be read. Never substitute a bolt for the pin.
