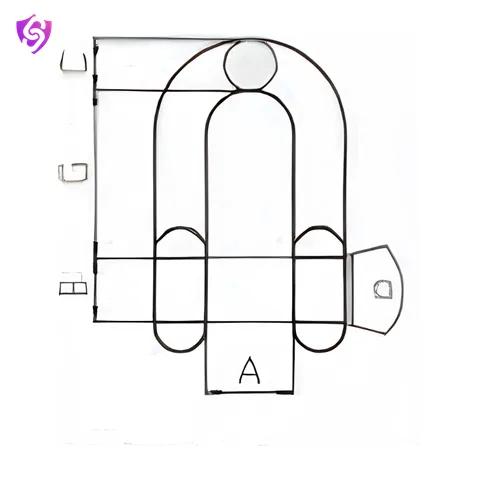

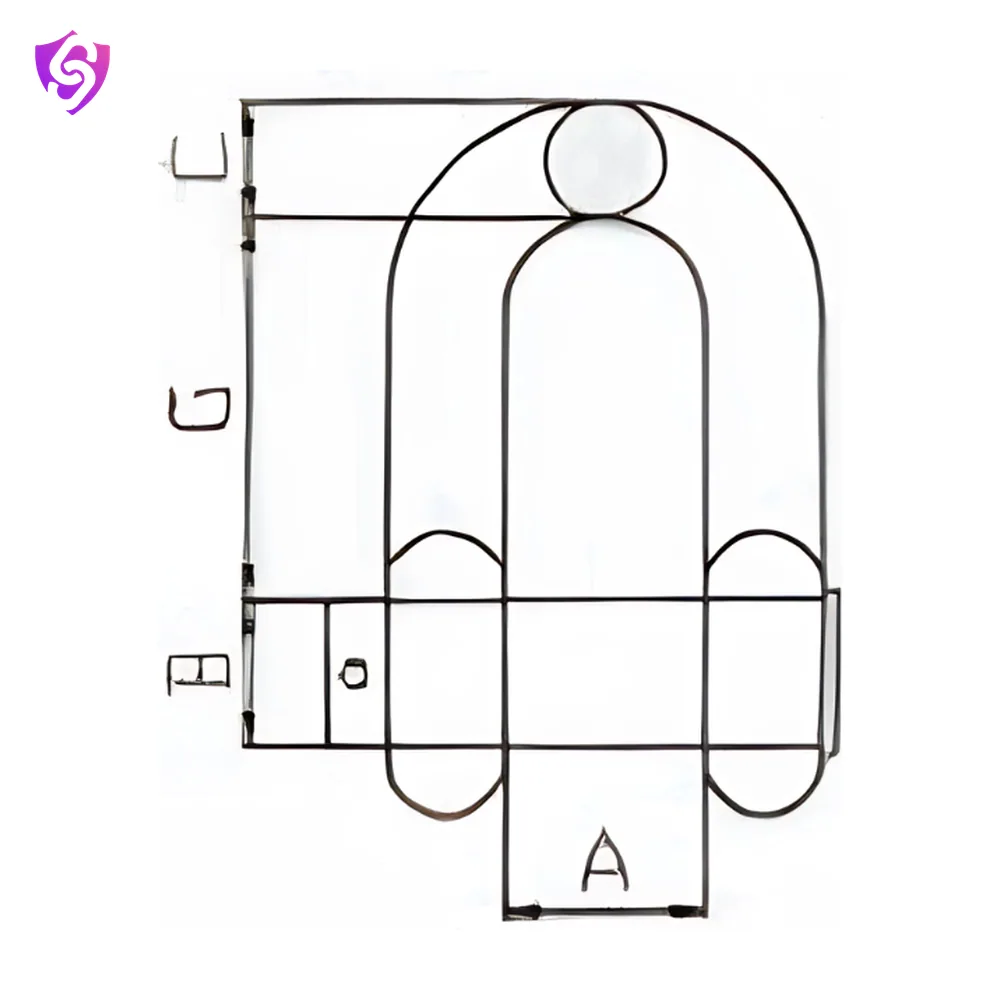

Dee Shackles
Mega Link Dee Shackles are forged, quenched and tempered alloy steel D-shackles with a maximum proof load of 2.2× WLL and ultimate load of 6× WLL.
- Test certificate available on request
Sizes and ratings
17 sizes| Size of Chain (in) | Size of Chain (mm) | W.L.L. (T) | Weight (kg) |
|---|---|---|---|
| 1/4 | 6 | 0.5 | 0.06 |
| 5/16 | 8 | 0.75 | 0.10 |
| 3/8 | 10 | 1 | 0.15 |
| 7/16 | 11 | 1.5 | 0.22 |
| 1/2 | 13 | 2 | 0.34 |
| 5/8 | 16 | 3.25 | 0.67 |
| 3/4 | 19 | 4.75 | 1.14 |
| 7/8 | 22 | 6.5 | 1.74 |
| 1 | 25 | 8.5 | 2.52 |
| 1 1/8 | 29 | 9.5 | 3.45 |
| 1 1/4 | 32 | 12 | 4.90 |
| 1 3/8 | 35 | 13.5 | 6.24 |
| 1 1/2 | 38 | 17 | 8.39 |
| 1 3/4 | 45 | 25 | 14.20 |
| 2 | 51 | 35 | 21.20 |
| 2 1/2 | 63 | 55 | 38.60 |
| 3 | 76 | 85 | 56.00 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Rigging, lifting, load attachment |
| Color | Silver/Galvanized |
| Country Of Origin | India |
| Standard | G-210 (Screw pin), G-215 (Round pin), G-2150 (Bolt Type) |
| W.L.L. range | 0.5–85 T |
Key features
- Forged Quenched and Tempered, with alloy pin
- Maximum Proof Load is 2.2 times the working Load limit
- Maximum Ultimate Load is 6 times the working load limit
- G-210 with Screw pin; G-215 with Round pin; G-2150 is Bolt Type
Applications
- Rigging for crane lifts
- Connecting slings to lifting points
- Ports and shipyards
- Construction and erection
Care and replacement
Before each lift, check that the pin is fully screwed home and that the body is not bent, stretched, cracked or worn by more than a tenth of its original section. Replace a shackle whose WLL marking can no longer be read. Never substitute a bolt for the pin.
